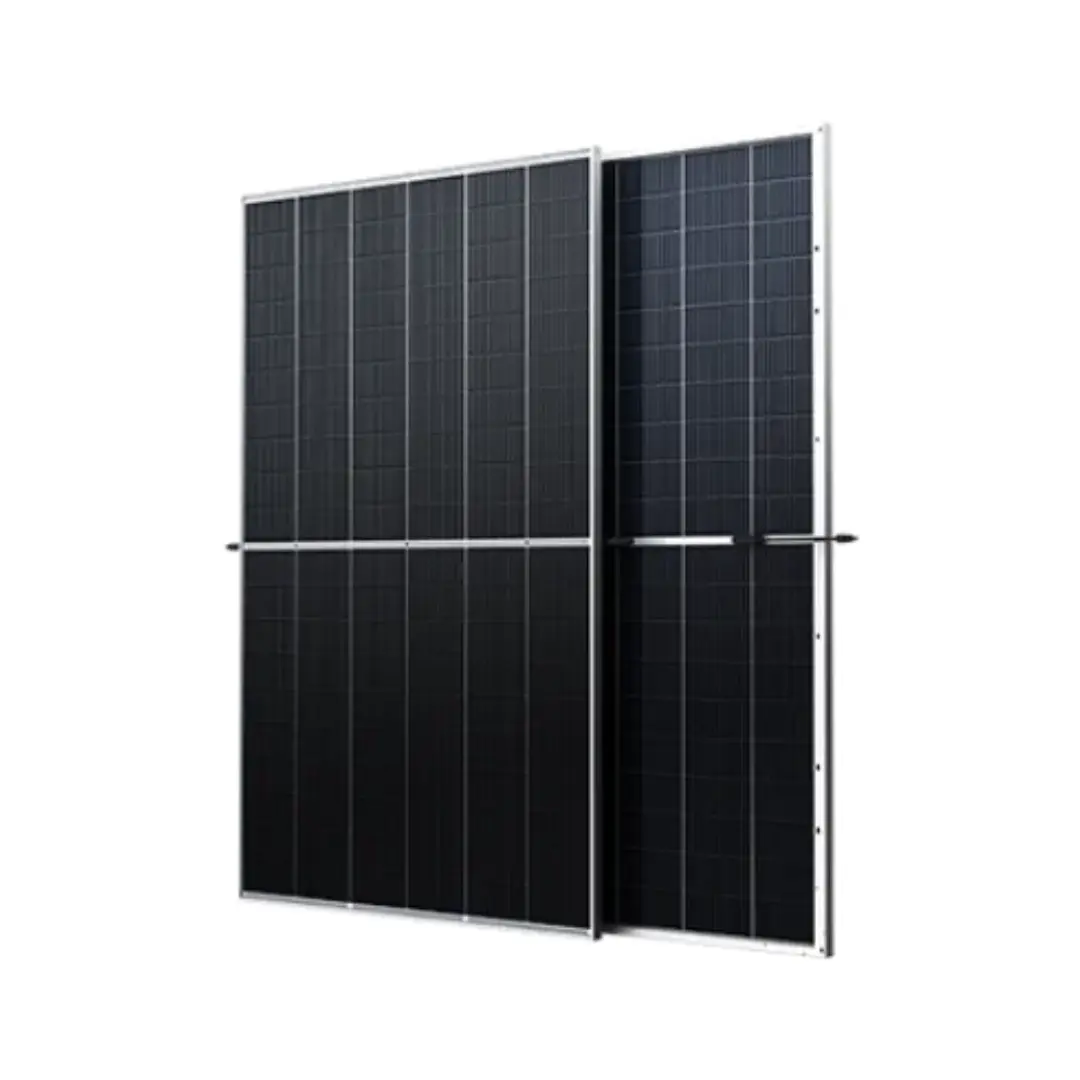

Trina 620W N-Type Bifacial Solar Panel

Trina 620W N-Type Bifacial Solar Panel

The Trina 620W N-Type Bifacial Solar Panel offers robust power output and efficient energy generation from both front and rear surfaces. Its N-type cells and bifacial dual-glass design boost electricity yield — especially when mounted over reflective or light-colored surfaces. With a sturdy aluminum frame, weather-resistant junction box, and high voltage tolerance, it’s a reliable choice for residential, commercial, or utility-scale solar installations.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial dual-glass panel

• Maximum Power (Pmax): 620 W

• Module Efficiency: ~22.5%

• Voltage at Maximum Power (Vmp): ~41.2 V

• Current at Maximum Power (Imp): ~15.1 A

• Open-Circuit Voltage (Voc): ~49.0 V

• Short-Circuit Current (Isc): ~15.8 A

• Power Tolerance: 0 to +3%

• Temperature Coefficient (Pmax): –0.29%/°C

• Maximum System Voltage: 1500 V DC

• Cell Configuration: ~132 half-cut N-type cells

• Glass: Dual tempered glass (front + rear)

• Frame: Anodized aluminum alloy

• Junction Box: Weather-resistant / IP-rated

• Connectors: MC4-compatible or equivalent

• Mechanical Load Capacity: Designed for typical wind and snow loads

• Operating Temperature Range: –40 °C to +85 °C (depending on environment)

• Bifacial Power Generation: Produces energy from both panel front and back surfaces
