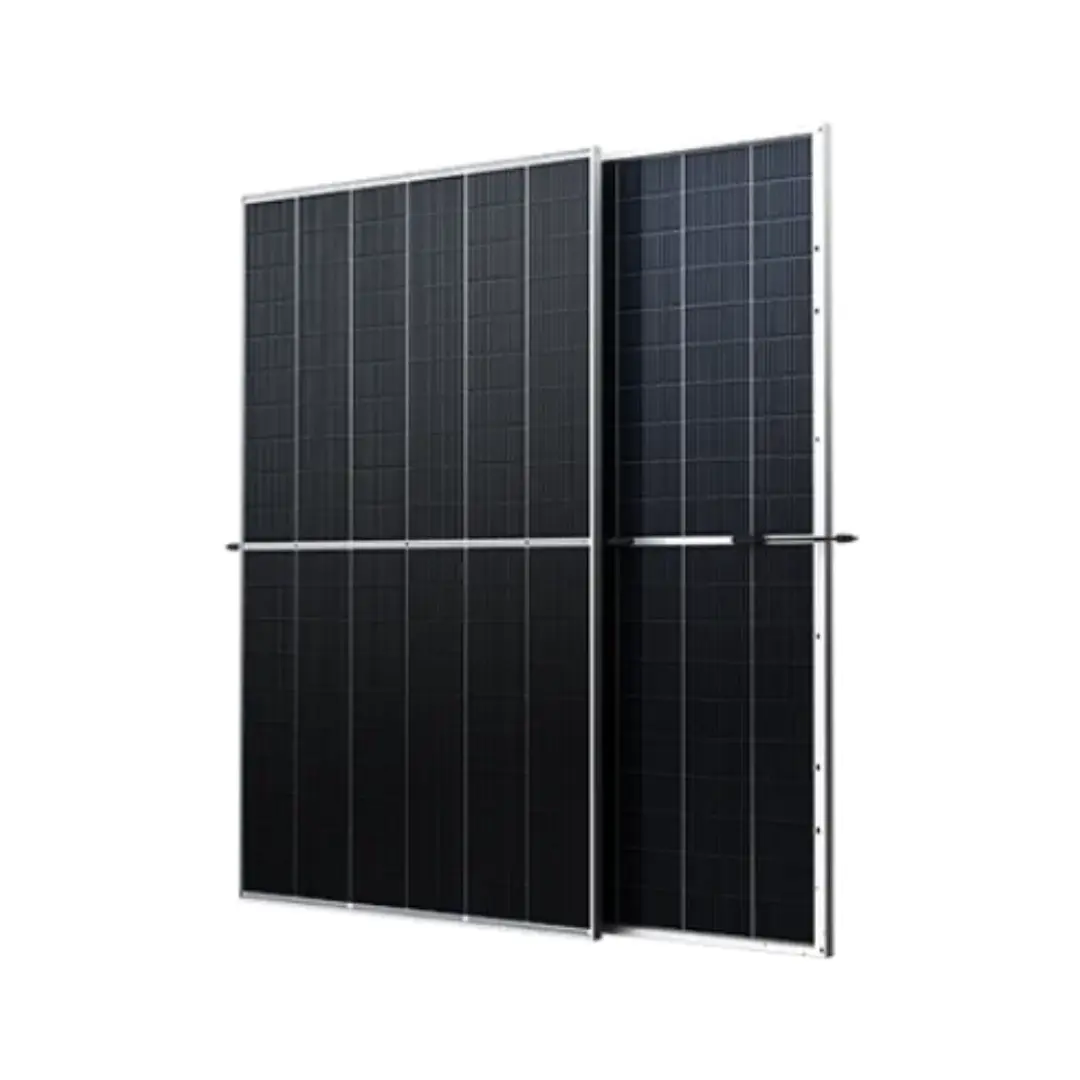

Trina 590W N-Type Bifacial Solar Panel

Trina 590W N-Type Bifacial Solar Panel

The Trina 590W N-Type Bifacial Solar Panel offers a balance of strong power output and efficient design. Its N-type mono-crystalline bifacial cells allow it to harvest sunlight from both the front and back, enhancing total energy yield — especially when installed over reflective surfaces. With a durable dual-glass construction, sturdy frame, and weather-resistant build, this panel delivers reliable performance and long-term stability for residential, commercial, or utility-scale solar projects.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial dual-glass

• Maximum Power (Pmax): 590 W

• Module Efficiency: ~22%

• Open-Circuit Voltage (Voc): ~48.9 V

• Voltage at Maximum Power (Vmp): ~40.7–41.0 V

• Short-Circuit Current (Isc): ~15.0–15.5 A

• Current at Maximum Power (Imp): ~14.5–15.0 A

• Power Tolerance: 0 to +3% (or small positive tolerance)

• Maximum System Voltage: 1500 V DC

• Cells: typically 132 half-cut N-type cells

• Glass: Dual tempered glass (front + back)

• Frame: Anodized aluminum alloy frame

• Junction Box: Weather-resistant junction box (e.g. IP-rated)

• Connectors: MC4-compatible (or equivalent)

• Mechanical Load Capacity: Suitable for typical snow and wind loads

• Operating Temperature Range: –40 °C to +85 °C (depending on local installation conditions)

• Bifacial Generation: Harvests light from both front and rear, ideal over reflective or light-colored surfaces
