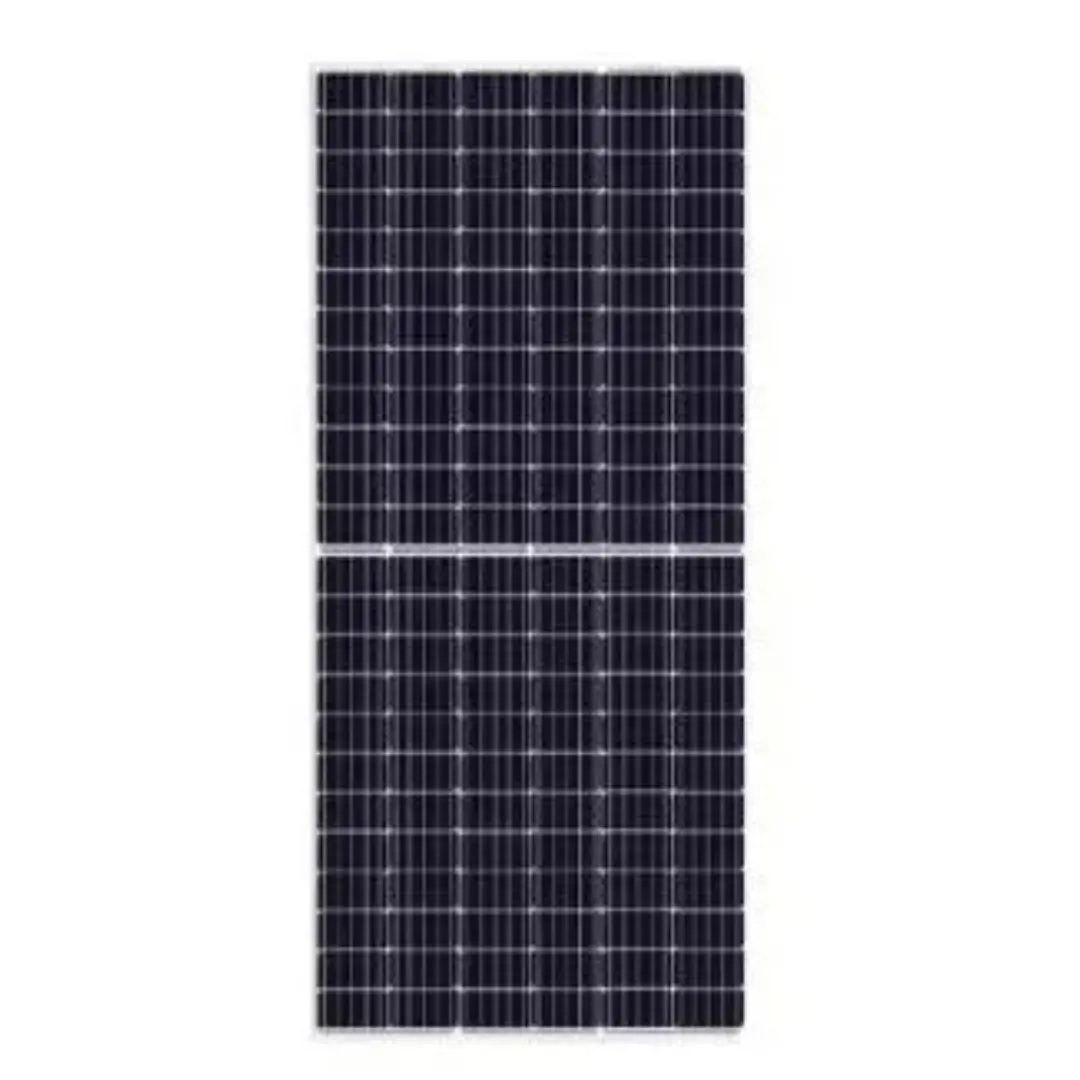

Canadian 650 W Mono PERC Solar Panel

Canadian 650 W Mono PERC Solar Panel

The Canadian 650 W Mono PERC Solar Panel delivers high power and efficiency for large-scale solar installations. Its PERC mono‑crystalline cells maximize light capture and energy conversion, while a robust frame and tempered glass build ensure durability and long-term stability. This panel is an excellent choice for solar farms, commercial rooftops, or ground-mounted arrays where high wattage per panel lowers installation cost and maximizes output.

Full Specifications:

• Module Type: Mono‑crystalline PERC, monofacial solar panel

• Maximum Power (Pmax): 650 W

• Module Efficiency: ~ 21.5%–22.5% (depending on variant and conditions)

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~ 41–45 V

• Current at Maximum Power (Imp): ~ 14.0–15.8 A

• Open-Circuit Voltage (Voc): ~ 48–52 V

• Short-Circuit Current (Isc): ~ 15.0–16.5 A

• Cell Configuration: Half-cut or full cells depending on panel design (e.g. 132 or 144 cells)

• Glass: Tempered front glass — durable, weather-resistant

• Frame: Anodized aluminum alloy frame — strong and corrosion-resistant

• Connectors: Standard PV connectors (MC4‑compatible or equivalent)

• Maximum System Voltage: Up to 1500 V DC (depending on system design)

• Operating Temperature Range: ~ –40 °C to +85 °C (suitable for various climates)

• Mechanical Load Rating: Designed to withstand typical environmental loads (wind, snow, etc.) — per installation standard

• Recommended Use: Solar farms, commercial rooftops, ground-mounted arrays, utility-scale solar projects, or large residential installations that benefit from high wattage panels
