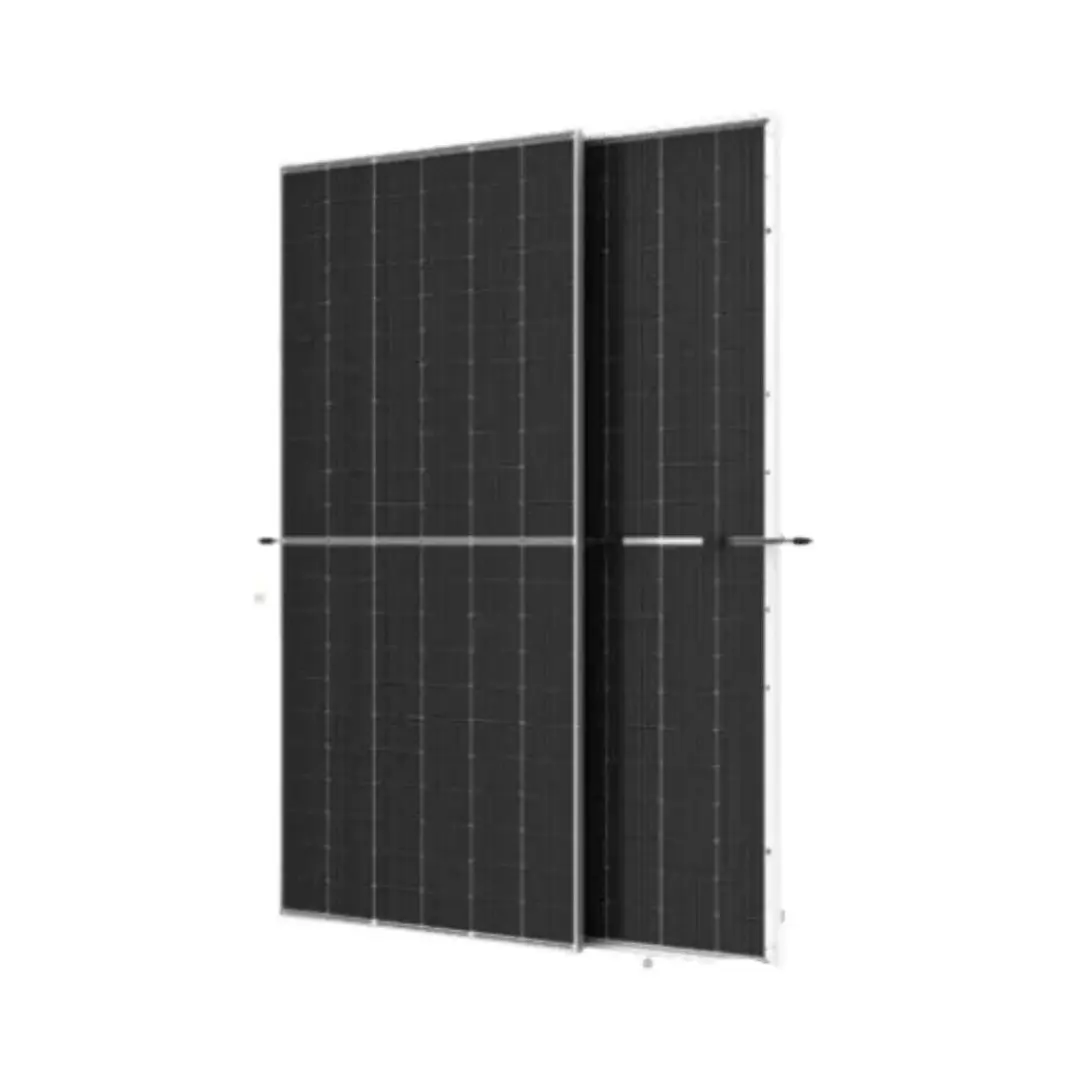

Trina Solar 710W N-Type Bifacial Solar Panel

Trina Solar 710W N-Type Bifacial Solar Panel

The Trina Solar 710W N-Type Bifacial Solar Panel combines high power output with advanced N-type cell technology and a dual-glass bifacial design to deliver strong energy yield — both from direct sunlight and reflected light. Its robust construction, weather resistance, and modern cell architecture make it a reliable choice for residential, commercial, or industrial solar installations aiming for maximum output per panel and long-term performance.

Full Specifications

• Module Type: N-type monocrystalline, bifacial dual-glass

• Maximum Power (Pmax): 710 W

• Module Efficiency: ≈ 23%

• Voltage at Maximum Power (Vmp): ≈ 41.0 V

• Current at Maximum Power (Imp): ≈ 17.4 A

• Open-Circuit Voltage (Voc): ≈ 49.0 V

• Short-Circuit Current (Isc): ≈ 18.3 A

• Power Tolerance: 0 to +5 W

• Temperature Coefficient (Pmax): –0.29%/°C

• Maximum System Voltage: 1500 V DC

• Cells: 132 half-cut N-type i-TOPCon cells

• Dimensions: 2384 × 1303 × 33 mm

• Weight: ~ 38.3 kg

• Glass: Dual tempered glass (front + back)

• Frame: Anodized aluminum alloy, 33 mm frame depth

• Junction Box: IP68 rated, weather-resistant

• Connectors: MC4-compatible (or similar)

• Mechanical Load Capacity: Front load (wind/snow) 5400 Pa / Rear 2400 Pa

• Operating Temperature Range: –40 °C to +85 °C

• Dual-sided (bifacial) power generation — rear-side energy gain when installed over reflective or high-albedo surfaces
