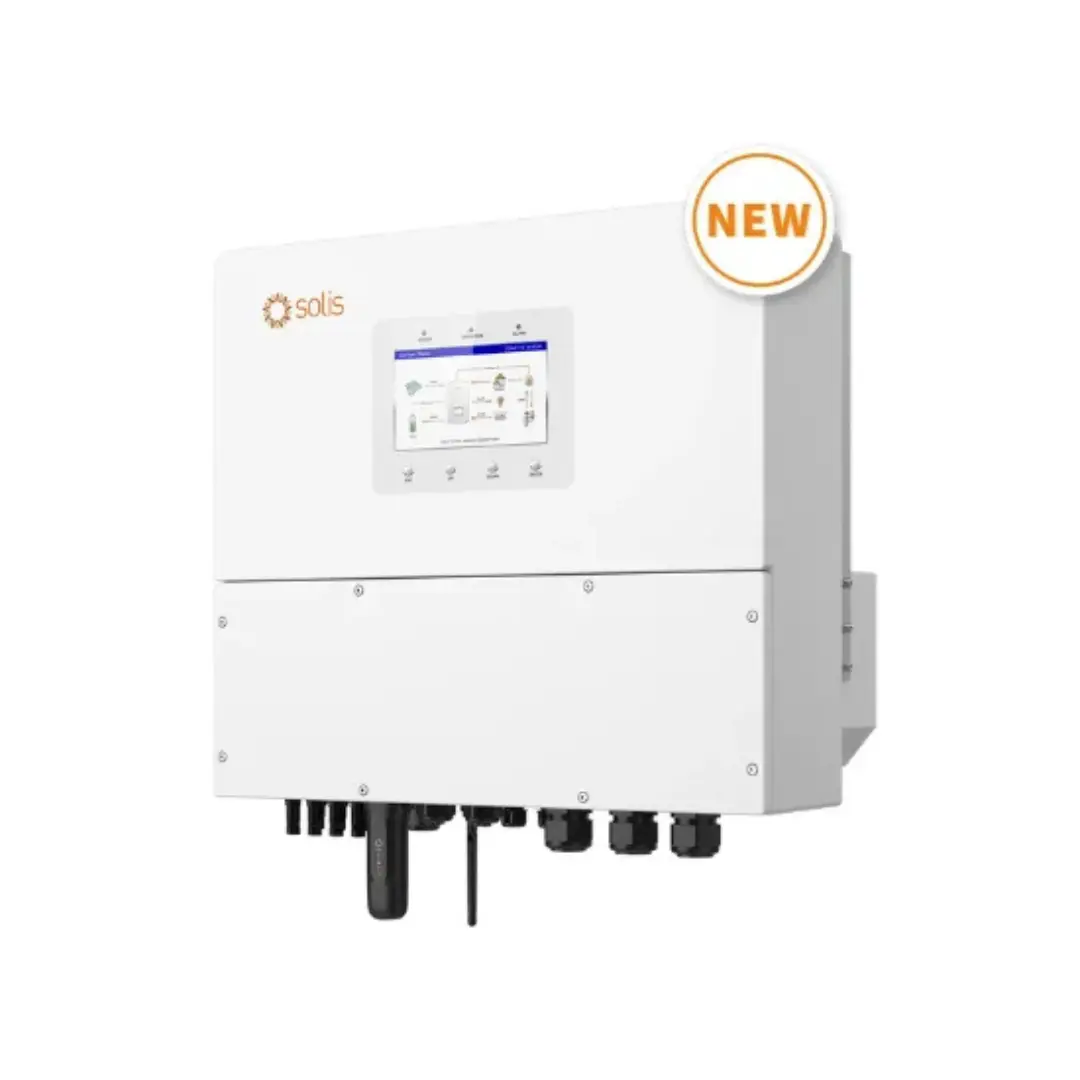

Solis 12kw S6 Hybrid Inverter (LV)

Solis 12kw S6 Hybrid Inverter (LV)

The Solis 12kw S6 Hybrid Inverter (LV) is a convenient and efficient option for homes and small businesses that want to combine solar panels, battery storage, and grid power all in one system. Solis 12kw S6 Hybrid Inverter (LV) converts energy from your solar array to usable AC power, supports low-voltage battery systems, and smoothly switches to backup power during outages. With smart battery management, stable output, and easy installation, this inverter helps you maximize solar energy savings while keeping power supply reliable and consistent.

Full Specifications:

• Inverter Type: Single-phase or three-phase hybrid inverter with low-voltage battery support (depends on wiring)

• Rated AC Output Power: 12 kW

• Maximum PV Input Power: ~15–18 kW (depending on solar array configuration)

• MPPT Trackers: 2 independent MPPT inputs

• Maximum DC Input Voltage: ~600–800 V (depending on configuration and battery compatibility)

• Max PV Array Voltage (per MPPT): ~400–600 V (depending on variant)

• Max Input Current per MPPT: ~25–30 A

• Supported Battery Voltage (LV): typical 48 V or 96 V (depending on battery pack)

• Max Battery Charge/Discharge Power: ~12 kW

• AC Output Voltage: 220 / 230 / 240 V (single-phase) or 400 V (three-phase, if configured)

• Output Frequency: 50 / 60 Hz (region dependent)

• Peak Efficiency: ~96–97%

• Cooling: Fan-based active cooling or passive cooling (depending on variant)

• Protection & Safety Features: Over-voltage protection, over-current protection, surge protection, anti‑islanding, short-circuit protection, battery protection, insulation monitoring

• Enclosure / Protection Rating: Suitable for indoor or sheltered installation (weather-protection depends on installation)

• Operating Temperature Range: –20 °C to +55 °C (depending on model and environment)

• Communication & Monitoring: Built-in ports for standard monitoring (RS485 / CAN / optional external monitoring module)

• Recommended Use: Residential solar + battery systems, small commercial setups, off-grid or grid-tied hybrid systems
