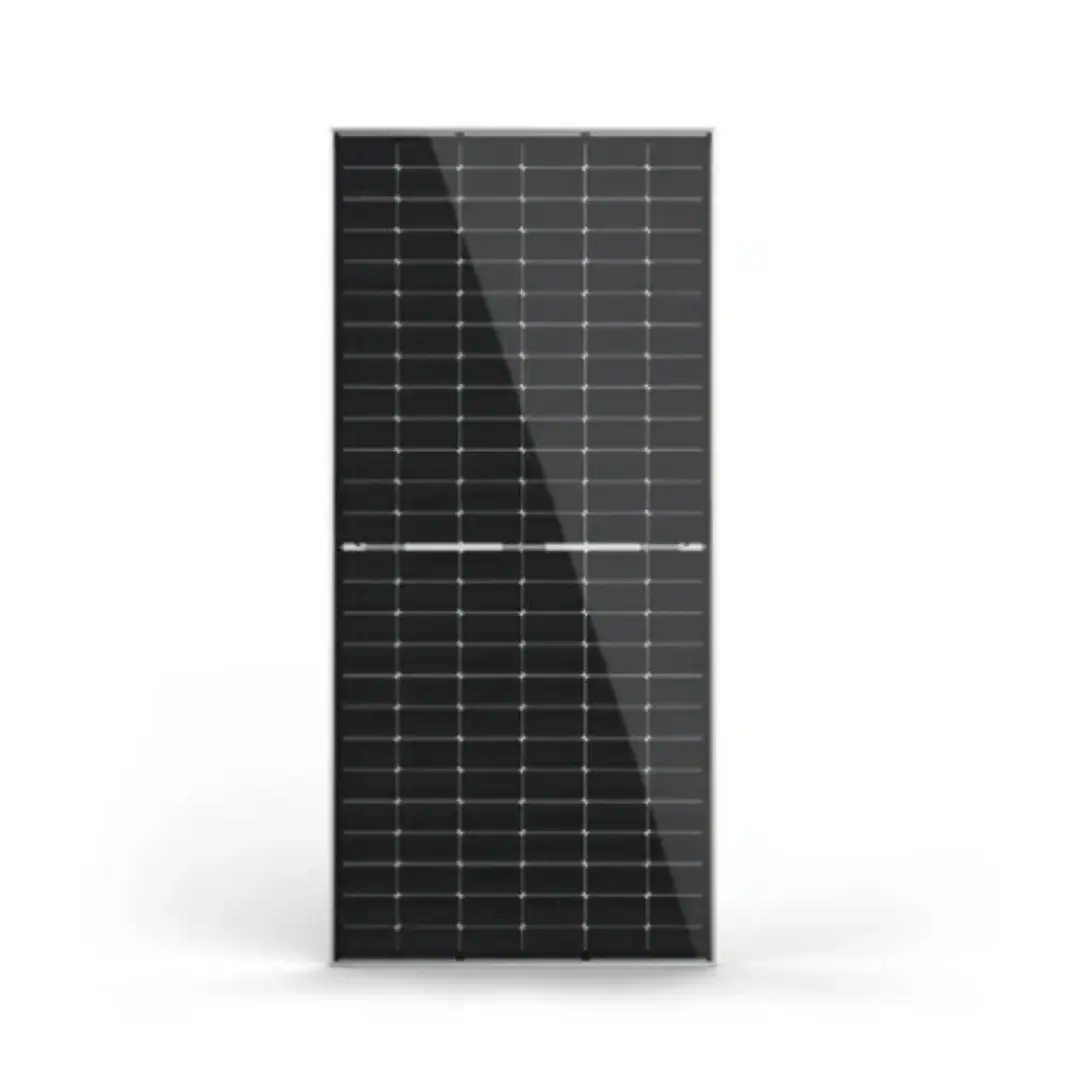

LONGi Hi-MO X10 645W Monofacial Solar Panel

LONGi Hi-MO X10 645W Monofacial Solar Panel

The LONGi Hi-MO X10 645W Monofacial Solar Panel offers strong power output and dependable performance for modern solar systems. With high‑quality N‑type mono‑crystalline cells and a robust monofacial panel design, it delivers consistent, efficient energy generation. Its tempered glass, sturdy aluminum frame, and weather‑resistant build make it a reliable choice for residential, commercial, or utility‑scale installations looking for long-term solar performance.

Full Specifications:

• Module Type: N‑type mono‑crystalline, monofacial

• Maximum Power (Pmax): 645 W

• Module Efficiency: ~22.8%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~44.6 V

• Current at Maximum Power (Imp): ~14.5 A

• Open-Circuit Voltage (Voc): ~54.0 V

• Short-Circuit Current (Isc): ~15.2 A

• Cell Configuration: 144 half-cut N‑type cells

• Dimensions: large-format panel (exact dimensions vary by variant)

• Weight: ~34–35 kg (typical for panels in this class)

• Glass: Tempered monofacial glass, anti‑reflective coating

• Frame: Anodized aluminum alloy

• Junction Box: Weather‑resistant, standard PV‑rated

• Connectors: MC4-compatible or equivalent

• Maximum System Voltage: 1500 V DC

• Mechanical Load Rating: high wind and snow load tolerance (designed for standard PV panel load ratings)

• Operating Temperature Range: –40 °C to +85 °C

• Recommended Use: Residential, commercial, or utility‑scale solar installations where monofacial panels are preferred
