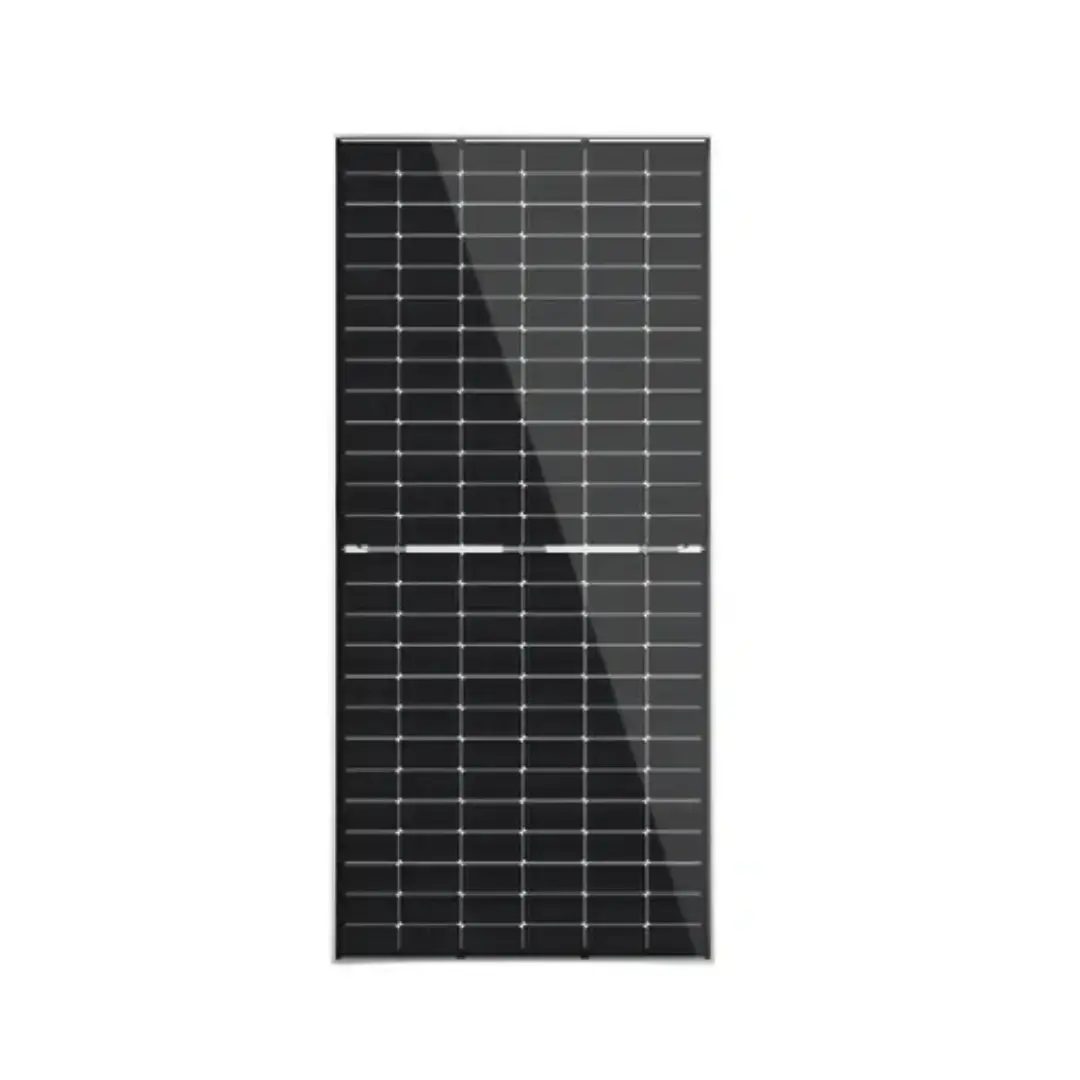

Jinko 630W N-Type Bifacial Solar Panel

Jinko 630W N-Type Bifacial Solar Panel

The Jinko 630W N-Type Bifacial Solar Panel combines high power output with superior efficiency and durability. Its bifacial design captures sunlight from both front and rear surfaces, maximizing energy generation in reflective environments. Built with advanced N-type mono-crystalline cells, dual tempered glass, and a sturdy aluminum frame, it delivers reliable performance and long-term stability for residential, commercial, and industrial solar systems.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial dual-glass

• Maximum Power (Pmax): 630 W

• Module Efficiency: ~22.5%

• Voltage at Maximum Power (Vmp): ~41.0 V

• Current at Maximum Power (Imp): ~15.4 A

• Open-Circuit Voltage (Voc): ~49.2 V

• Short-Circuit Current (Isc): ~16.1 A

• Power Tolerance: 0 to +3%

• Temperature Coefficient (Pmax): –0.29%/°C

• Temperature Coefficient (Voc): –0.25%/°C

• Temperature Coefficient (Isc): +0.045%/°C

• Number of Cells: 132 cells

• Dimensions: 2384 × 1303 × 33 mm

• Weight: ~36.5 kg

• Glass: Dual tempered glass, 2.0 mm each side

• Frame: Anodized aluminum

• Junction Box: IP68 rated

• Connectors: MC4 compatible

• Max System Voltage: 1500 V DC

• Series Fuse Rating: 35 A

• Operating Temperature: –40°C to +70°C

• Bifacial Generation: Power from both front and back sides
