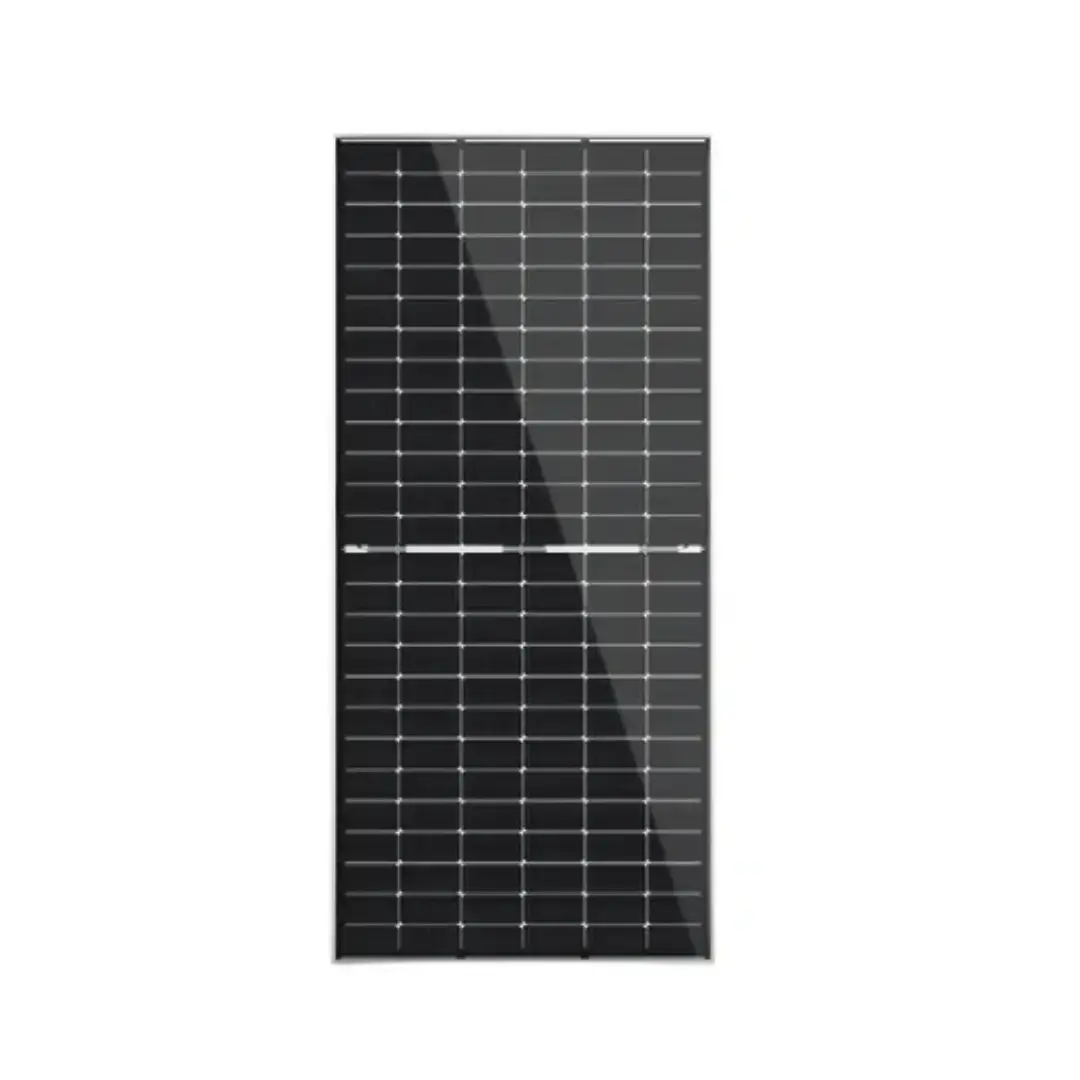

Jinko 620W N-Type Bifacial Solar Panel

Jinko 620W N-Type Bifacial Solar Panel

The Jinko 620W N-Type Bifacial Solar Panel delivers strong power and high efficiency for residential and commercial solar systems. Its bifacial design captures sunlight from both front and back surfaces, boosting total energy production. With N-type mono-crystalline cells, dual tempered glass, and a robust aluminum frame, it ensures reliable performance and long-term durability in different weather conditions.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial dual-glass

• Maximum Power (Pmax): 620 W

• Module Efficiency: ~22.2%

• Voltage at Maximum Power (Vmp): ~40.8 V

• Current at Maximum Power (Imp): ~15.2 A

• Open-Circuit Voltage (Voc): ~48.9 V

• Short-Circuit Current (Isc): ~15.8 A

• Power Tolerance: 0 to +3%

• Temperature Coefficient (Pmax): –0.29%/°C

• Temperature Coefficient (Voc): –0.25%/°C

• Temperature Coefficient (Isc): +0.045%/°C

• Number of Cells: 132 cells

• Dimensions: 2384 × 1303 × 33 mm

• Weight: ~36 kg

• Glass: Dual tempered glass, 2.0 mm each side

• Frame: Anodized aluminum

• Junction Box: IP68 rated

• Connectors: MC4 compatible

• Max System Voltage: 1500 V DC

• Series Fuse Rating: 35 A

• Operating Temperature: –40°C to +70°C

• Bifacial Generation: Generates power from front and back
