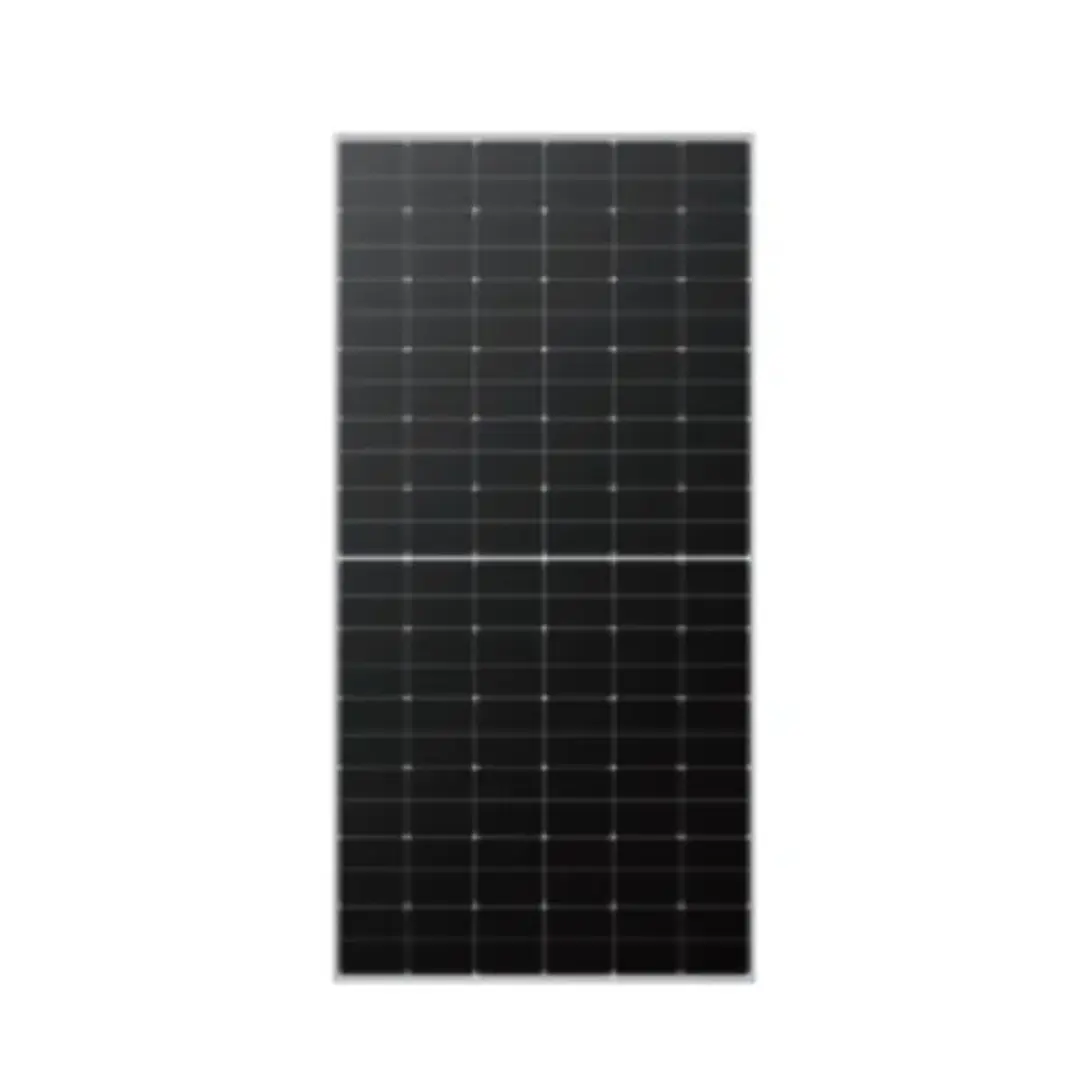

Jinko 615W N-Type Bifacial Solar Panel

Jinko 615W N-Type Bifacial Solar Panel

The Jinko 615W N-Type Bifacial Solar Panel delivers high power and efficient energy generation for residential and commercial solar systems. Its bifacial design captures sunlight from both front and back surfaces, increasing overall energy yield. With N-type mono-crystalline cells, dual tempered glass, and a sturdy aluminum frame, it ensures long-term durability, reliable performance, and consistent output even in challenging conditions.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial dual-glass

• Maximum Power (Pmax): 615 W

• Module Efficiency: ~22%

• Voltage at Maximum Power (Vmp): ~40.7 V

• Current at Maximum Power (Imp): ~15.1 A

• Open-Circuit Voltage (Voc): ~48.8 V

• Short-Circuit Current (Isc): ~15.7 A

• Power Tolerance: 0 to +3%

• Temperature Coefficient (Pmax): –0.29%/°C

• Temperature Coefficient (Voc): –0.25%/°C

• Temperature Coefficient (Isc): +0.045%/°C

• Number of Cells: 132 cells

• Dimensions: 2384 × 1303 × 33 mm

• Weight: ~36 kg

• Glass: Dual tempered glass, 2.0 mm each side

• Frame: Anodized aluminum

• Junction Box: IP68 rated

• Connectors: MC4 compatible

• Max System Voltage: 1500 V DC

• Series Fuse Rating: 35 A

• Operating Temperature: –40°C to +70°C

• Bifacial Generation: Power from front and back
