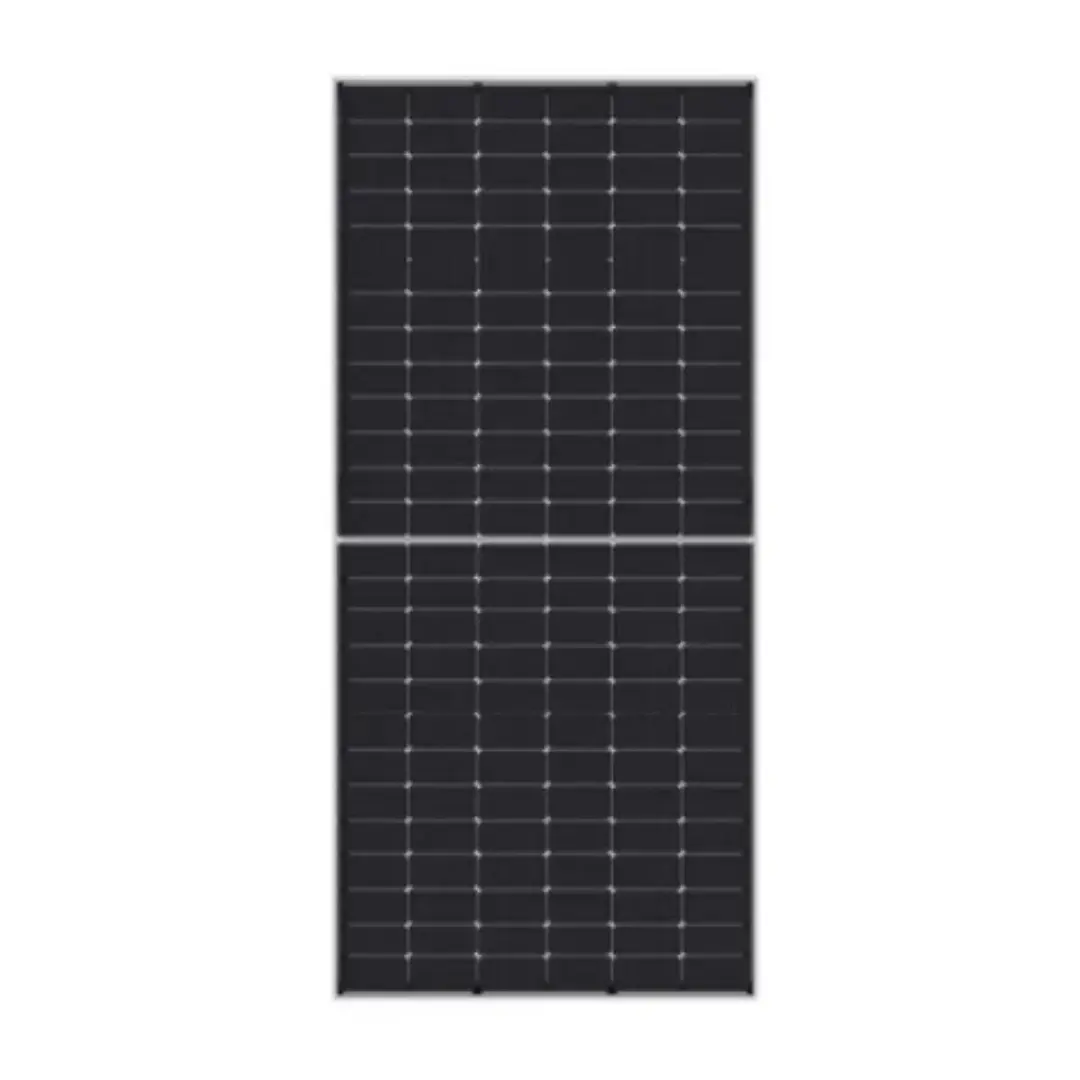

Jinko 595W Monofacial Solar Panel

Jinko 595W Monofacial Solar Panel

The Jinko 595W Monofacial Solar Panel provides high power output and efficient performance for residential and commercial solar systems. Its advanced monofacial N-type cells ensure reliable energy generation from the front side, delivering consistent output throughout the day. With dual tempered glass, a durable aluminum frame, and weather-resistant components, it offers long-term durability and dependable performance in various conditions.

Full Specifications:

• Module Type: N-type mono-crystalline, monofacial

• Maximum Power (Pmax): 595 W

• Module Efficiency: ~22%

• Voltage at Maximum Power (Vmp): ~41 V

• Current at Maximum Power (Imp): ~14.5 A

• Open-Circuit Voltage (Voc): ~49 V

• Short-Circuit Current (Isc): ~15 A

• Power Tolerance: 0 to +3%

• Temperature Coefficient (Pmax): –0.29%/°C

• Temperature Coefficient (Voc): –0.25%/°C

• Temperature Coefficient (Isc): +0.045%/°C

• Number of Cells: 132 cells

• Dimensions: 2384 × 1303 × 30 mm

• Weight: ~36 kg

• Glass: Tempered, 2.0 mm

• Frame: Anodized aluminum

• Junction Box: IP68 rated

• Connectors: MC4 compatible

• Max System Voltage: 1500 V DC

• Series Fuse Rating: 25 A

• Operating Temperature: –40°C to +70°C
