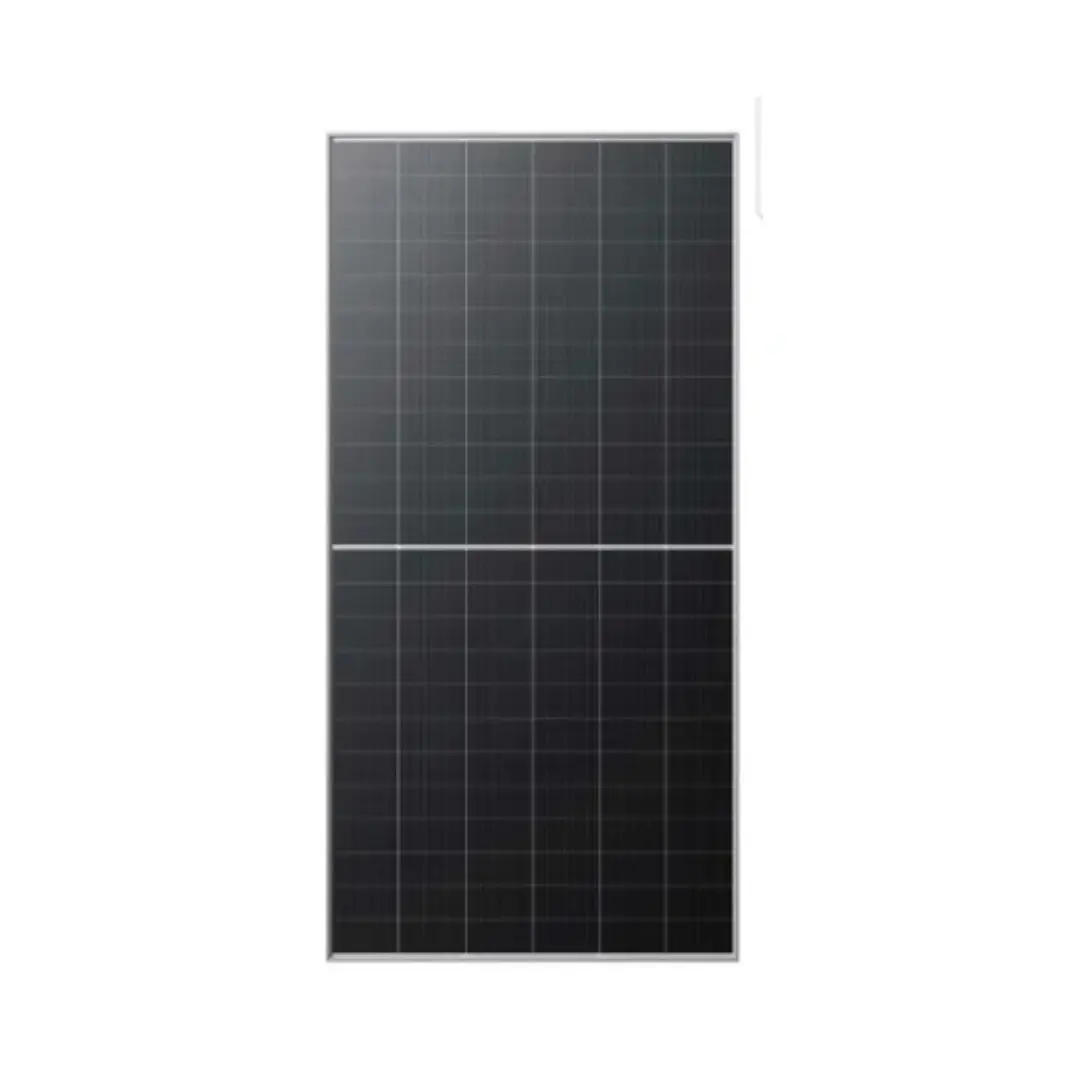

Jinko 590W Mono-Facial Solar Panel

The Jinko 590W Mono-Facial Solar Panel offers strong power output and reliable performance for homes and businesses. It works well in different weather conditions and keeps producing steady energy throughout the day. Its solid build and high efficiency make it a good choice for anyone looking to reduce electricity costs and get long-term value from their solar setup.

Specification of Jinko 590W Mono-Facial

Electrical (STC)

• Maximum Power (Pmax): 590 W

• Voltage at Maximum Power (Vmp): around 43.7 V

• Current at Maximum Power (Imp): around 13.5 A

• Open-Circuit Voltage (Voc): around 52.6 V

• Short-Circuit Current (Isc): around 14.1 A

• Module Efficiency: about 22.8%

• Power Tolerance: 0 to +3%

• Temperature Coefficient (Pmax): –0.29% per °C

• Temperature Coefficient (Voc): –0.25% per °C

• Temperature Coefficient (Isc): +0.045% per °C

Mechanical & Physical

• Cell Type: N-type Mono-crystalline (TOPCon, half-cut cells)

• Number of Cells: 144 cells

• Dimensions: 2278 × 1134 × 30 mm

• Weight: 27 kg

• Front Glass: 3.2 mm tempered, anti-reflective

• Frame: Anodized aluminum

• Junction Box: IP68

• Connectors: MC4 compatible

• Max System Voltage: 1500 V DC

• Series Fuse Rating: 25 A

Operating / Environmental

• Operating Temperature: –40°C to +70°C

• Wind and Snow Load: Designed for high durability

Warranty

• Product Warranty: 10–12 years (varies by region)

• Performance Warranty: 25–30 years, retaining about 87–88% output after 30 years.
