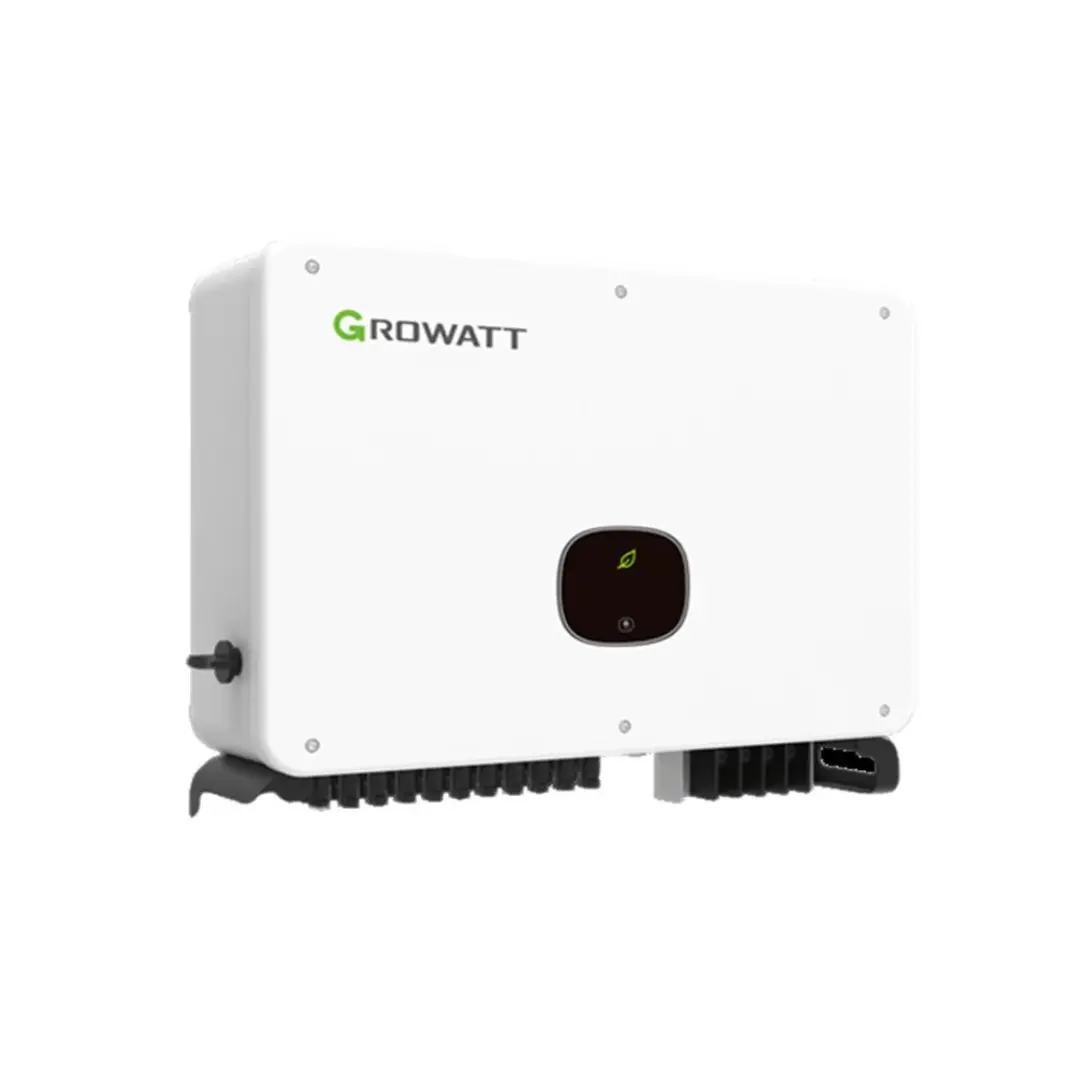

Growatt 60 kW On-Grid Inverter

The Growatt 60 kW On‑Grid Inverter is built for medium to large solar installations like commercial rooftops, small solar farms, or large residential communities. It efficiently converts solar DC power into stable three-phase AC electricity for the grid. With multiple MPPT inputs, flexible PV array support, and a weather‑resistant design, it ensures reliable performance under varying sunlight and environmental conditions. It’s a solid choice if you want a powerful, low‑maintenance inverter that maximizes solar output for years.

Full Specifications:

• Inverter Type: Three‑phase grid-tied (on‑grid) string inverter

• Rated AC Output Power: 60 kW

• Maximum DC Input Voltage: ~1,100 V

• MPPT Trackers: 3–4 independent MPPT inputs (depending on variant)

• MPPT Operating Voltage Range: ~200 V – ~950 V (depending on PV array design)

• Max DC Input Power (PV array capacity): ~75–80 kW (depending on oversizing allowance)

• Strings per MPPT: up to 2 strings per tracker (flexible layout)

• Max Input Current per MPPT: ~30–35 A (varies with string and module)

• AC Output Voltage: 400 V, three-phase, 3L/N/PE

• Output Frequency: 50 / 60 Hz (depending on local grid standard)

• Peak Conversion Efficiency: ~98.5% – 98.8%

• Power Factor: Adjustable, typically ~1.0, configurable to 0.8 lag/lead

• Cooling Method: Active fan‑based cooling system

• Protection & Safety: Anti‑islanding, over‑voltage protection, over‑current protection, surge protection, insulation monitoring, short‑circuit protection, built‑in surge suppressors

• Enclosure / Ingress Protection: Weather-resistant casing (suitable for rooftop or sheltered outdoor installation)

• Operating Temperature Range: approx. –25 °C to +60 °C (suitable for a variety of climates)

• Communication / Monitoring: Standard interfaces (e.g. RS485 / LAN), optional remote monitoring module support

• Grid Compliance: Compatible with standard three‑phase grid connections (3L/N/PE)

• Recommended Use: Commercial rooftops, solar farms, medium-large grid‑tie installations, net-metering applications, export-grade solar systems
