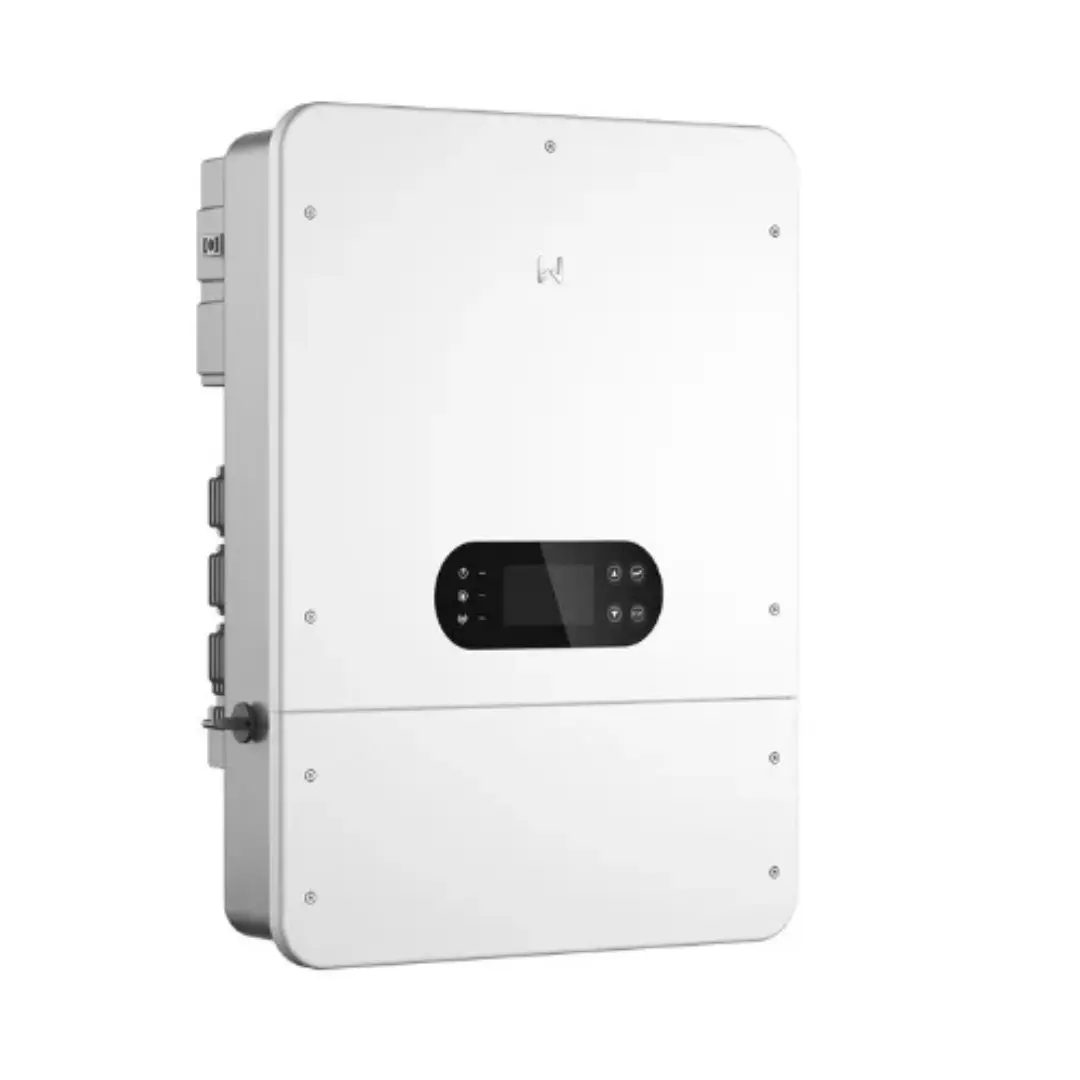

GoodWe ET-LV Series 15kW Hybrid Inverter

GoodWe ET-LV Series 15kW Hybrid Inverter

The GoodWe ET-LV Series 15kW Hybrid Inverter is a dependable choice for homes and small businesses aiming to combine solar panels, batteries, and the grid into one efficient energy system. It provides clean three-phase power, supports low-voltage batteries for safety and flexibility, and switches quickly to backup during outages. With easy monitoring, high efficiency, and strong protection features, it helps you make the most of solar energy while ensuring a stable, uninterrupted power supply.

Full Specifications:

• Inverter Type: Three-phase hybrid inverter

• Rated AC Output Power: 15 kW

• Maximum PV Input Power: ~20–22 kW (depending on configuration)

• Maximum PV Input Voltage: ~1000 V

• MPPT Trackers: 2 (for optimized solar input)

• Maximum Input Current per MPPT: ~20–25 A

• Battery Compatibility: Low-voltage lithium batteries (LV type)

• Supported Battery Voltage Range: ~80–460 V (depending on battery and system)

• Max Battery Charge/Discharge Power: 15 kW

• Backup Switch Time (EPS): < 10 ms

• Output AC Type: Three-phase, 400 V

• Peak Efficiency: ~97%

• Communication Options: Wi-Fi, RS485, CAN (for system monitoring)

• Protection: Over-voltage, over-current, short-circuit, surge, over-temperature protection

• Cooling Method: Intelligent fan cooling

• Enclosure Rating: IP65 (suitable for indoor/outdoor installation)

• Operating Temperature Range: –25 °C to +60 °C

• Recommended Use: Residential solar + battery installations, small commercial setups, backup power systems
