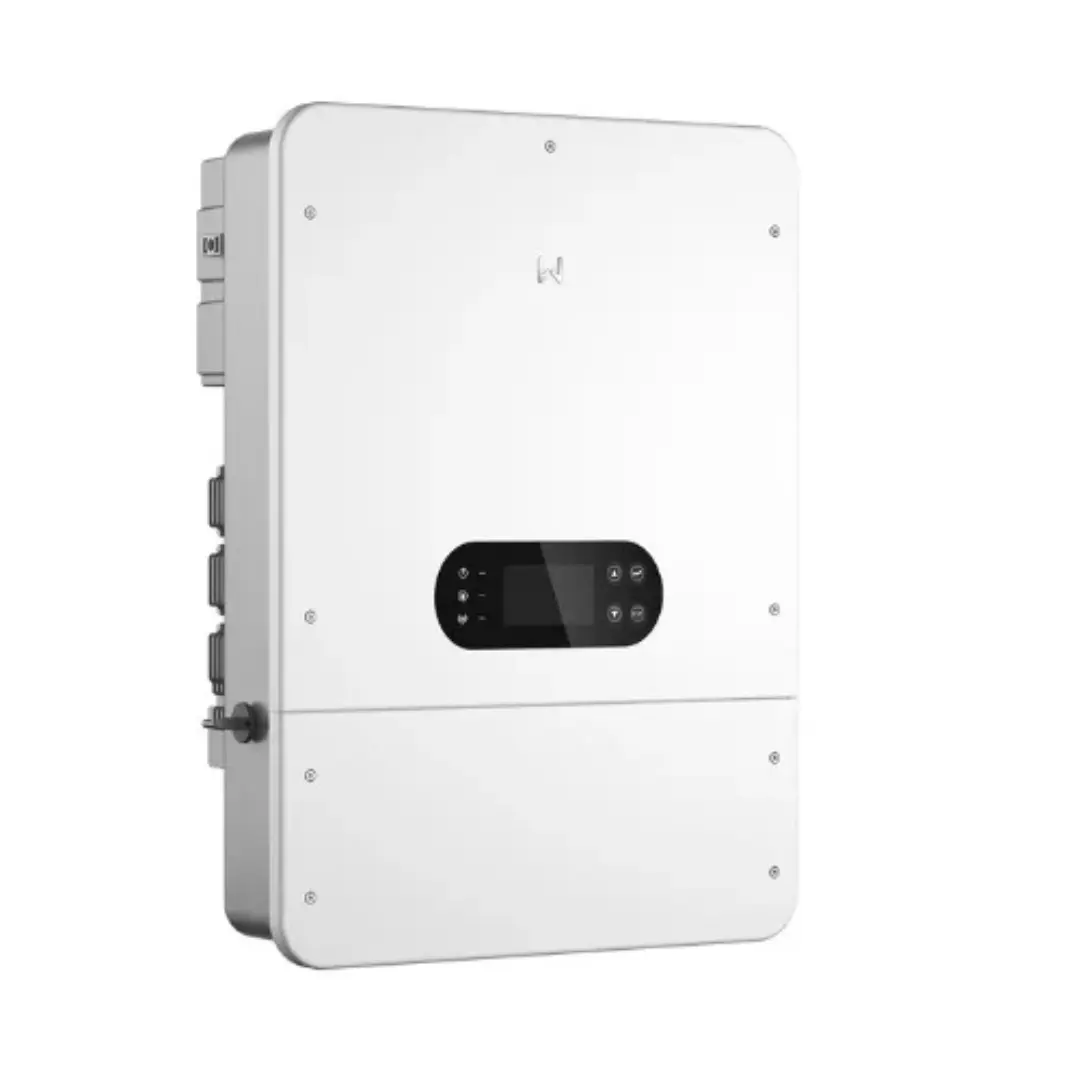

GoodWe ET-LV Series 10 kW Hybrid Inverter

GoodWe ET-LV Series 10 kW Hybrid Inverter

The GoodWe ET-LV Series 10 kW Hybrid Inverter combines solar panels, battery storage, and grid power into one compact system — ideal for homes or small businesses. GoodWe ET-LV Series 10 kW delivers stable three-phase electricity, supports low-voltage battery use for safer and more flexible setups, and switches nearly instantly to backup during outages. With efficient energy conversion, smart system monitoring, and rugged build quality, it helps you maximize solar benefits while ensuring reliable power and long-term performance.

Full Specifications:

• Inverter Type: Three-phase hybrid inverter

• Rated AC Output Power: 10 kW

• Maximum PV Input Power: ~14–16 kW (depending on solar array configuration)

• Maximum PV Input Voltage: ~1,000 V

• MPPT Trackers: 2 independent MPPT inputs

• Maximum Input Current per MPPT: ~16–20 A

• Battery Compatibility: Low-voltage lithium or lead-acid batteries (LV type)

• Supported Battery Voltage Range: ~80–460 V (depending on battery configuration)

• Maximum Battery Charge/Discharge Power: 10 kW

• Backup Switch Time (EPS Mode): < 10 ms

• AC Output: Three-phase, 400 V nominal

• Peak Efficiency: ~96–97%

• Communication Interfaces: Wi-Fi, RS485, CAN — supports remote monitoring

• Protection Features: Over-voltage, over-current, short-circuit, surge, over-temperature, anti-islanding

• Cooling Method: Intelligent fan cooling, temperature-controlled

• Enclosure Rating: IP65 — suitable for indoor or protected outdoor installation

• Operating Temperature Range: –25 °C to +60 °C

• Recommended Use: Residential solar plus storage systems, small businesses, off-grid ready hybrid installations
