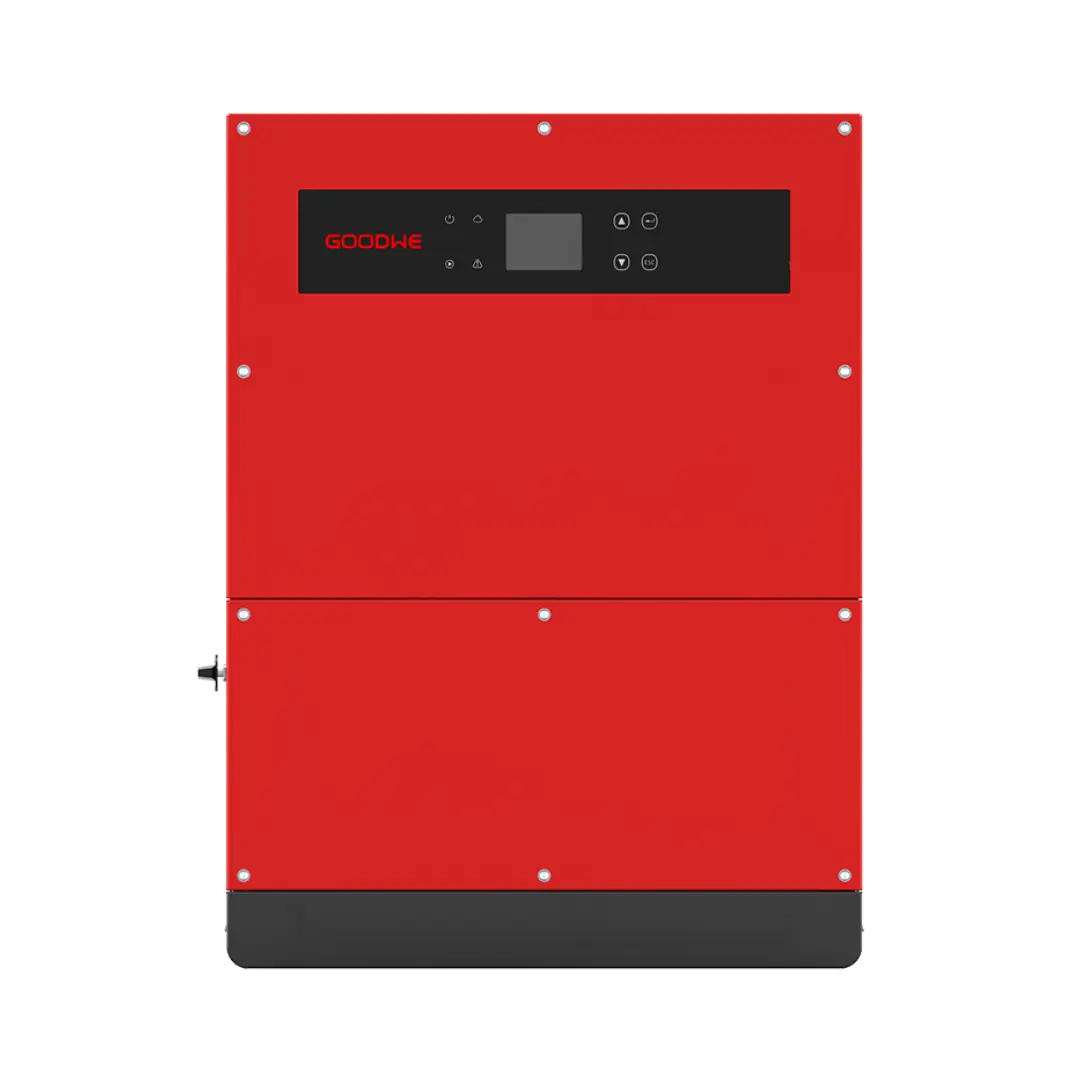

GoodWe 50 kW On‑Grid Inverter

GoodWe 50 kW On‑Grid Inverter

The GoodWe 50 kW On‑Grid Inverter is ideal for commercial rooftops, mid‑size solar farms, or large residential complexes aiming to convert solar power directly to grid electricity. It delivers stable three‑phase AC output, supports large PV arrays, and offers high efficiency — helping maximize energy yield with minimal maintenance. Its rugged design, multiple MPPT inputs, and grid‑ready output make it a dependable choice for long-term solar energy projects.

Full Specifications:

• Inverter Type: Three‑phase grid‑tied (on‑grid) string inverter

• Rated AC Output Power: 50 kW

• Maximum DC Input Voltage: ~1100 V

• MPPT Trackers: Multiple (typically 3–4 MPPT inputs, depending on model)

• MPPT Operating Voltage Range: ~200–950 (or as per array design)

• Maximum DC Input Power (PV array limit): ~65–70 kW (dependent on oversizing allowance)

• Input Strings per MPPT: up to 2 strings per MPPT (flexible array layout)

• Maximum Input Current per MPPT: ~30 A (varies by string)

• AC Output Voltage: 400 V (three‑phase, 3L/N/PE)

• Output Frequency: 50 / 60 Hz

• Peak Conversion Efficiency: ~98.5–98.8%

• Power Factor: Adjustable (typically ~1, with configurable range)

• Cooling Method: Fan-based active cooling

• Protection & Safety: Anti‑islanding, over‑voltage protection, over‑current protection, surge protection, insulation monitoring, short-circuit protection

• Enclosure / Ingress Protection: IP65 (weather‑proof, suitable for outdoor or rooftop installation)

• Operating Temperature Range: approx. –25 °C to +60 °C

• Grid Compliance: Standard three‑phase grid interface (3L/N/PE)

• Communication / Monitoring: Standard interfaces (e.g. RS485 / LAN), optional Wi‑Fi or remote monitoring modules

• Recommended Use: Commercial roofs, ground-mounted solar farms, large residential buildings, or any medium-to-large scale PV installations
