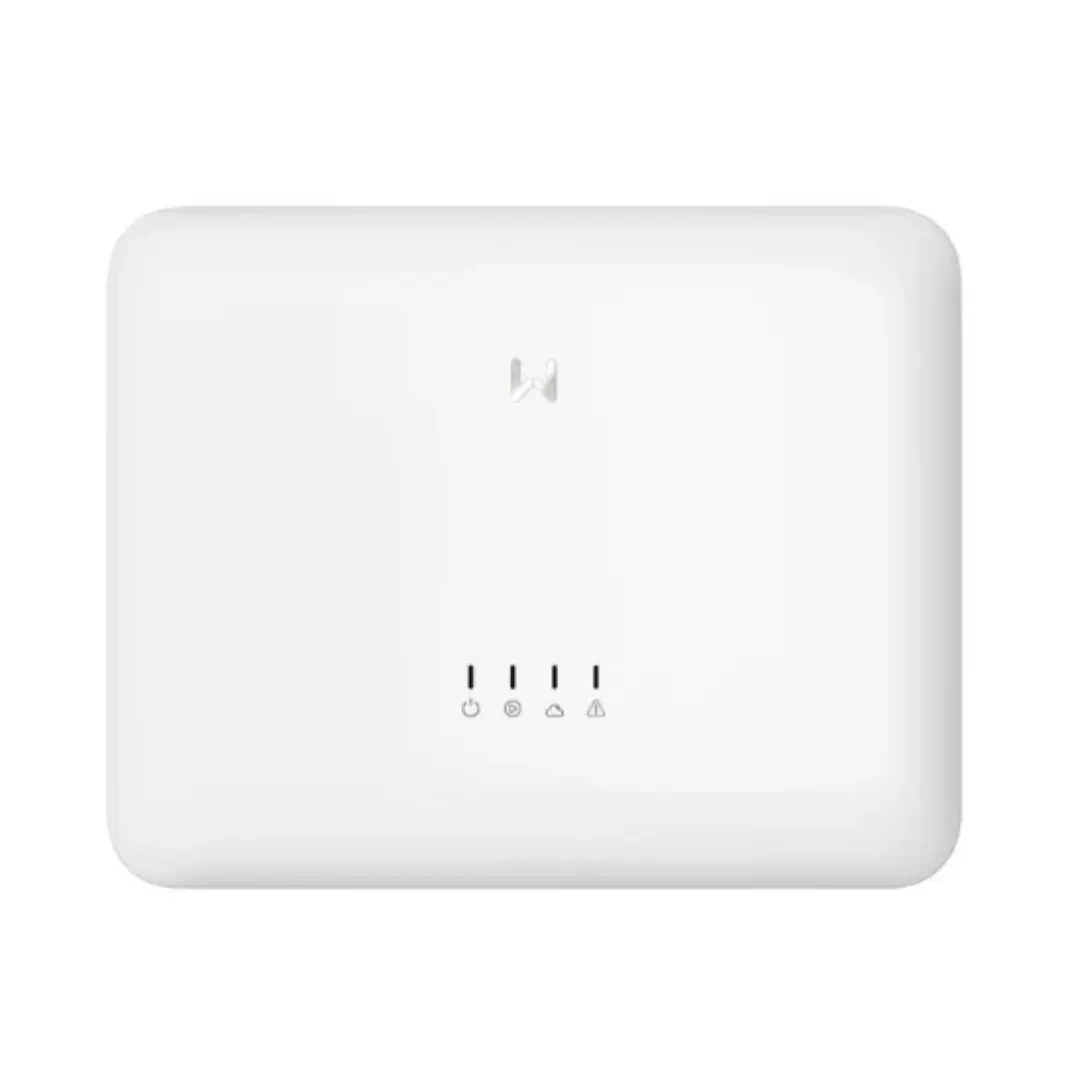

GoodWe 15 kW On-Grid Inverter

GoodWe 15 kW On‑Grid Inverter

The GoodWe 15 kW On‑Grid Inverter is a smart solution for homes, shops, or small commercial buildings that want to turn solar panels’ output into clean grid electricity. It produces stable three‑phase AC power, supports flexible solar array input via multiple MPPT paths, and runs with high efficiency helping you reduce electricity costs and feed surplus energy to the grid. Its rugged, weather‑sealed build and reliable safety features make it a dependable choice for long-term solar setups.

Full Specifications:

• Inverter Type: Three‑phase grid-tied (on‑grid) inverter

• Rated AC Output Power: 15 kW

• Maximum DC Input Voltage: ~1,000–1,100 V

• MPPT Trackers: 2 independent MPPT inputs

• MPPT Operating Voltage Range: ~200–950 V (depending on panel configuration)

• Maximum DC Input Power: ~20–22 kW (depends on array oversizing allowance)

• Strings per MPPT: up to 2 strings per tracker (flexible layout)

• Max Input Current per MPPT: ~25–30 A

• AC Output Voltage: 400 V (three‑phase, 3L/N/PE)

• Output Frequency: 50 / 60 Hz (region dependent)

• Peak Efficiency: ~97.5% – 98.5%

• Power Factor: Adjustable, typically ~1.0

• Cooling Method: Active fan‑based cooling

• Protection & Safety: Anti‑islanding, over-voltage and over-current protection, surge protection, short‑circuit and insulation monitoring

• Enclosure / Ingress Protection: Weather‑resistant (suitable for outdoor or sheltered rooftop installation)

• Operating Temperature Range: approx. –25 °C to +60 °C

• Grid Compatibility: Standard three‑phase grid connections (3L/N/PE)

• Communication / Monitoring: RS485 or LAN interfaces for system data, optional external monitoring modules

• Recommended Use: Small to medium commercial buildings, rooftop solar systems, grid‑tie with net metering, small solar farms
