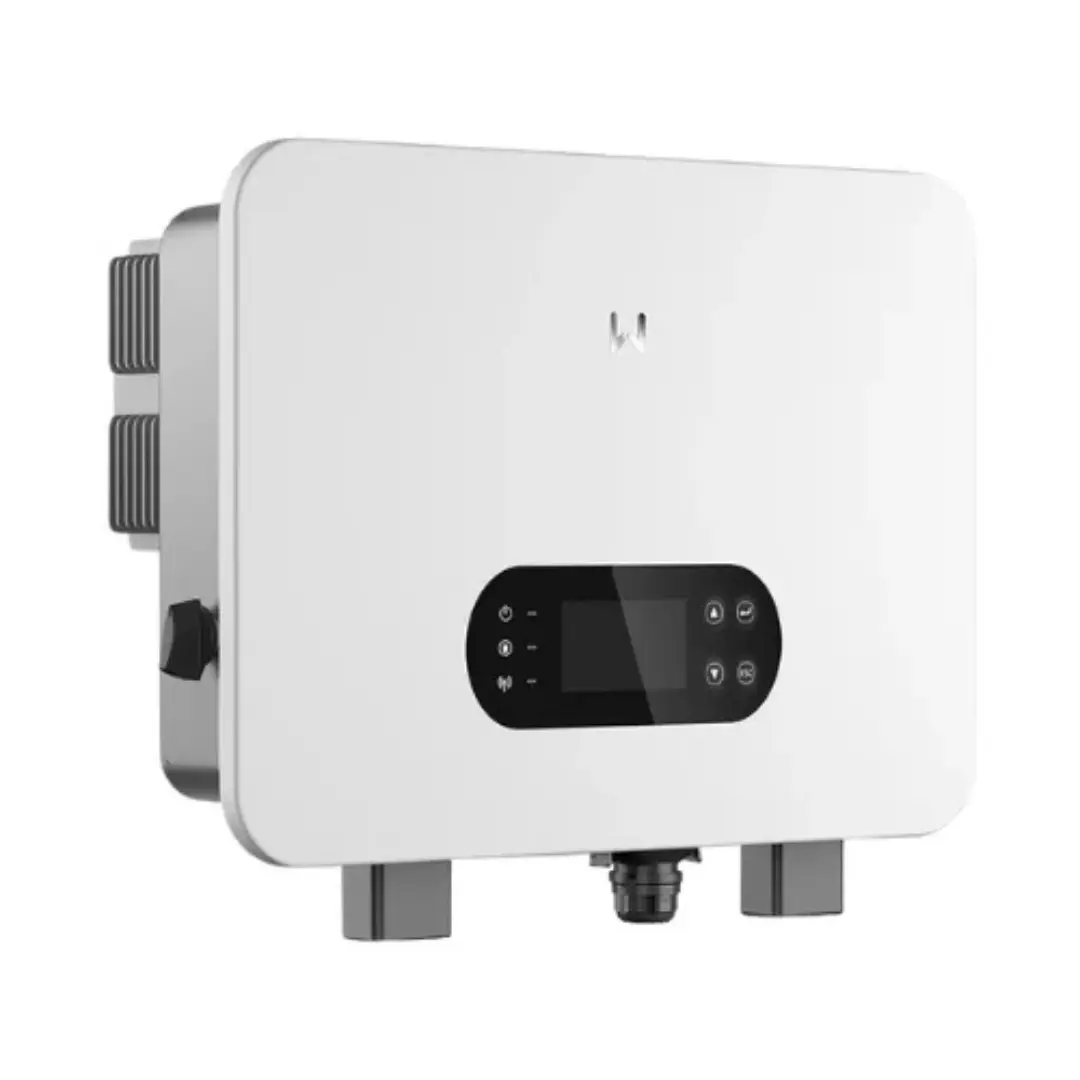

GoodWe 12 kW Hybrid Inverter

GoodWe 12 kW Hybrid Inverter

The GoodWe 12 kW Hybrid Inverter is a reliable solution for households or small businesses looking to combine solar panels, battery storage, and grid power into one smart system. It converts solar energy into stable three-phase AC power, supports battery backup for blackout protection, and offers efficient energy management. With its high efficiency and robust design, it keeps your solar installation running smoothly and helps you save on electricity costs over the long run.

Full Specifications:

• Inverter Type: Three-phase hybrid inverter

• Rated AC Output Power: 12 kW

• Maximum PV Input Power: ~16–18 kW (depends on PV array)

• Maximum PV Input Voltage: ~1000 V

• MPPT Trackers: 2 independent MPPT strings

• Max Input Current per MPPT: ~20–25 A

• Battery Compatibility: Low-voltage lithium or lead-acid batteries

• Supported Battery Voltage Range: ~80–460 V (varies by battery type)

• Battery Charge/Discharge Power: up to 12 kW

• Backup Switch Time: < 10 ms (EPS / backup mode)

• Output AC: Three-phase, 400 V nominal

• Peak Efficiency: ~96–97%

• Communication: Wi-Fi, RS485, CAN (for monitoring and control)

• Protection: Over-voltage, over-current, short-circuit, surge protection, temperature protection, anti-islanding

• Cooling: Intelligent fan-based cooling

• Enclosure Rating: IP65 (suitable for indoor and sheltered outdoor installation)

• Operating Temperature Range: –25 °C to +60 °C

• Recommended Use: Residential solar-plus-storage systems, small commercial setups, backup power systems
