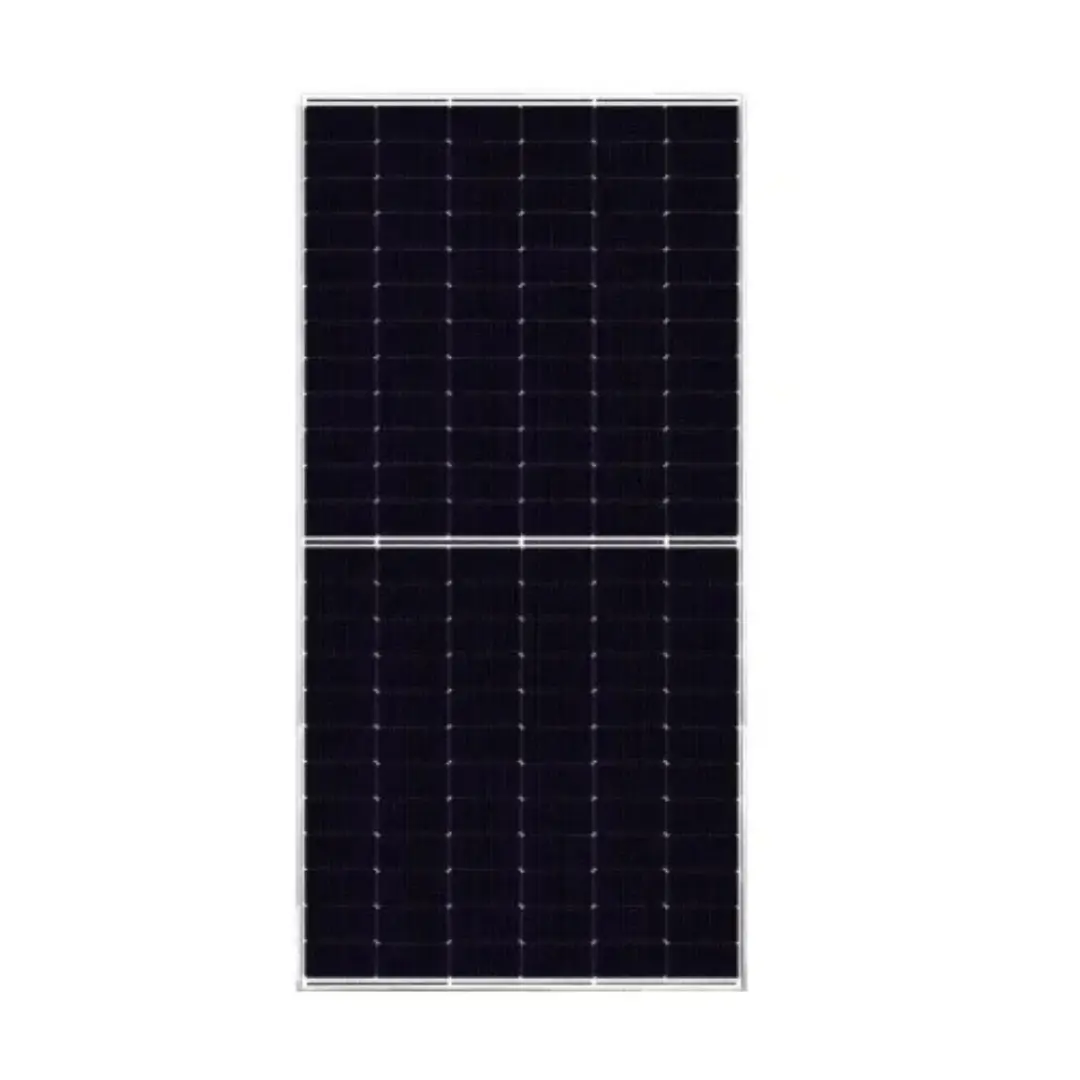

Canadian Solar 620W N-Type Bifacial Solar Panel

Canadian Solar 620W N-Type Bifacial Solar Panel

The Canadian Solar 620W N-Type Bifacial Solar Panel combines high output and modern TOPCon N-type cell technology with a bifacial dual-glass design, giving you energy from both the front and rear surfaces. That means more total yield, especially if installed over reflective or light-colored ground. With strong build quality — tempered dual glass, a robust aluminum frame, and weather-resistant construction — it’s built for long-term reliability whether on rooftops, commercial buildings, or large-scale solar farms.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial dual-glass, TOPCon technology

• Maximum Power (Pmax): 620 W

• Module Efficiency: ~23.0%

• Voltage at Maximum Power (Vmp): ~41.2 V

• Current at Maximum Power (Imp): ~15.06 A

• Open-Circuit Voltage (Voc): ~48.4 V

• Short-Circuit Current (Isc): ~16.08 A

• Power Tolerance: typically 0 to +3% (or small positive tolerance depending on production batch)

• Number of Cells: 132 half-cut cells (or equivalent layout depending on model)

• Dimensions: ~2382 × 1134 × 30 mm (panel size may slightly vary depending on variant)

• Weight: ~33–34 kg (varies slightly per module variant)

• Glass: Dual tempered glass (front and back)

• Frame: Anodized aluminum alloy frame

• Junction Box / Connectors: Standard IP-rated junction box, MC4-compatible (or equivalent) connectors

• Maximum System Voltage: 1500 V DC

• Mechanical Load Rating: Designed to withstand standard wind and snow loads (wind ~2400 Pa, snow ~5400 Pa depending on mounting)

• Operating Temperature Range: –40 °C to +85 °C (depending on installation environment)

• Bifacial Generation: Can generate power from both front and rear — extra yield when rear side receives reflected or diffused light

• Recommended Use: Rooftop solar, commercial/industrial installations, ground-mounted solar farms, high-yield installations
