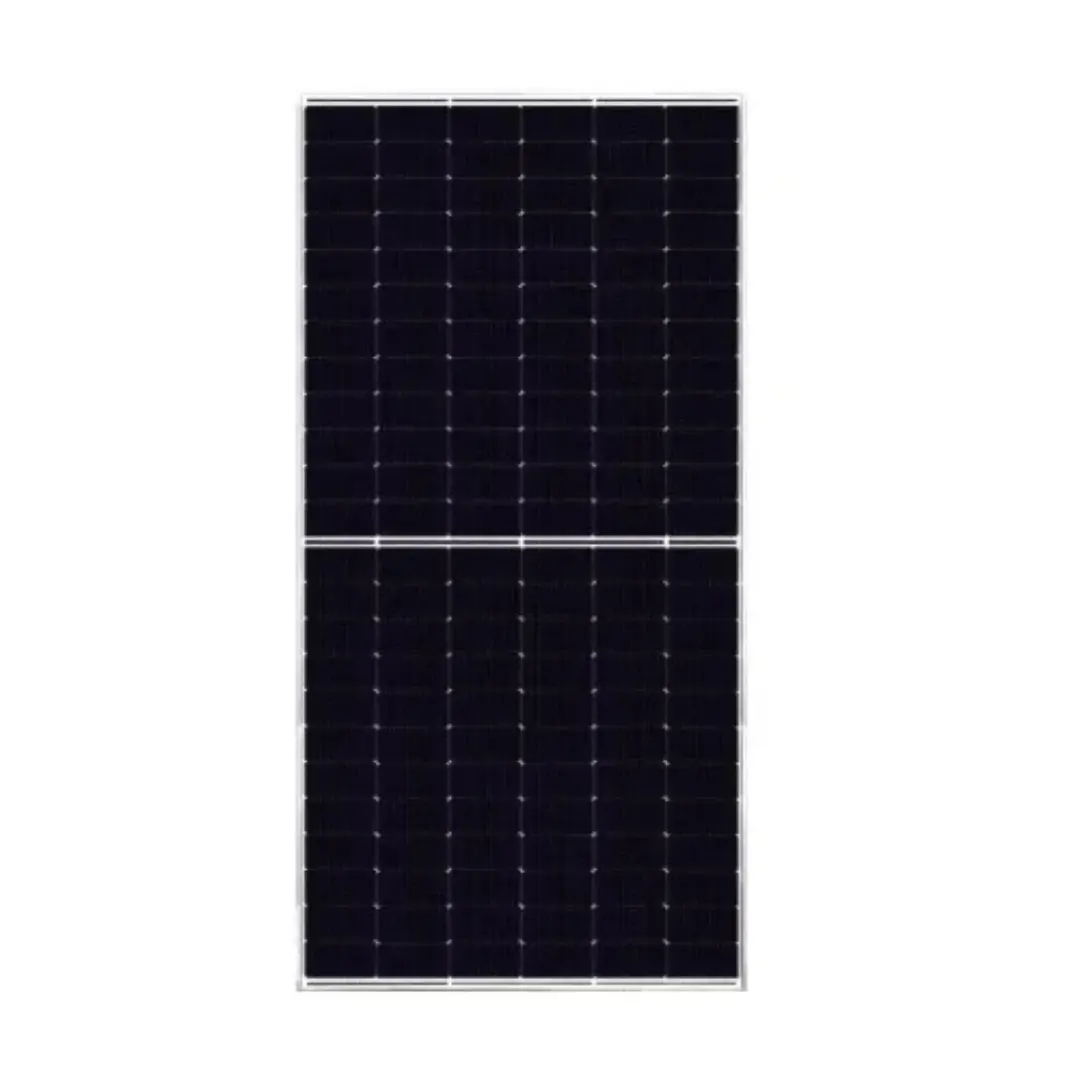

Canadian Solar 615W N-Type Bifacial Solar Panel

Canadian Solar 615W N-Type Bifacial Solar Panel

The Canadian Solar 615W N-Type Bifacial Solar Panel combines strong power output with advanced N-type TOPCon cell technology and a dual-glass bifacial build. It captures sunlight from both the front and back surfaces — giving a significant energy boost especially when installed over reflective surfaces or bright ground. With tempered dual glass, a sturdy aluminum frame, and weather-resistant build quality, it delivers reliable, long-term performance for rooftops, commercial buildings, or utility-scale solar farms.

Full Specifications

• Module Type: N-type TOPCon mono-crystalline, bifacial, dual-glass

• Maximum Power (Pmax): 615 W

• Module Efficiency: ~22.8%

• Voltage at Maximum Power (Vmp): ~41.0 V

• Current at Maximum Power (Imp): ~15.01 A

• Open-Circuit Voltage (Voc): ~48.2 V

• Short-Circuit Current (Isc): ~16.02 A

• Power Tolerance: 0 to +3% (or small positive tolerance depending on batch)

• Cell Layout: 132 cells (e.g. 2 × 11 × 6 configuration)

• Glass: Dual tempered glass (front + back)

• Frame: Anodized aluminum alloy frame

• Connectors: Standard PV connectors (e.g. MC4-EVO2 or equivalent)

• Maximum System Voltage: 1500 V DC

• Mechanical Load Rating: designed to handle standard wind and snow loads (strong build quality)

• Operating Temperature Range: –40 °C to +85 °C (suitable for diverse climates)

• Bifacial Generation: Generates energy from both front and rear surfaces — gains extra output when rear side has reflected or diffused light

• Recommended Use: Residential rooftops, commercial buildings, ground-mounted solar farms, and utility-scale installations
