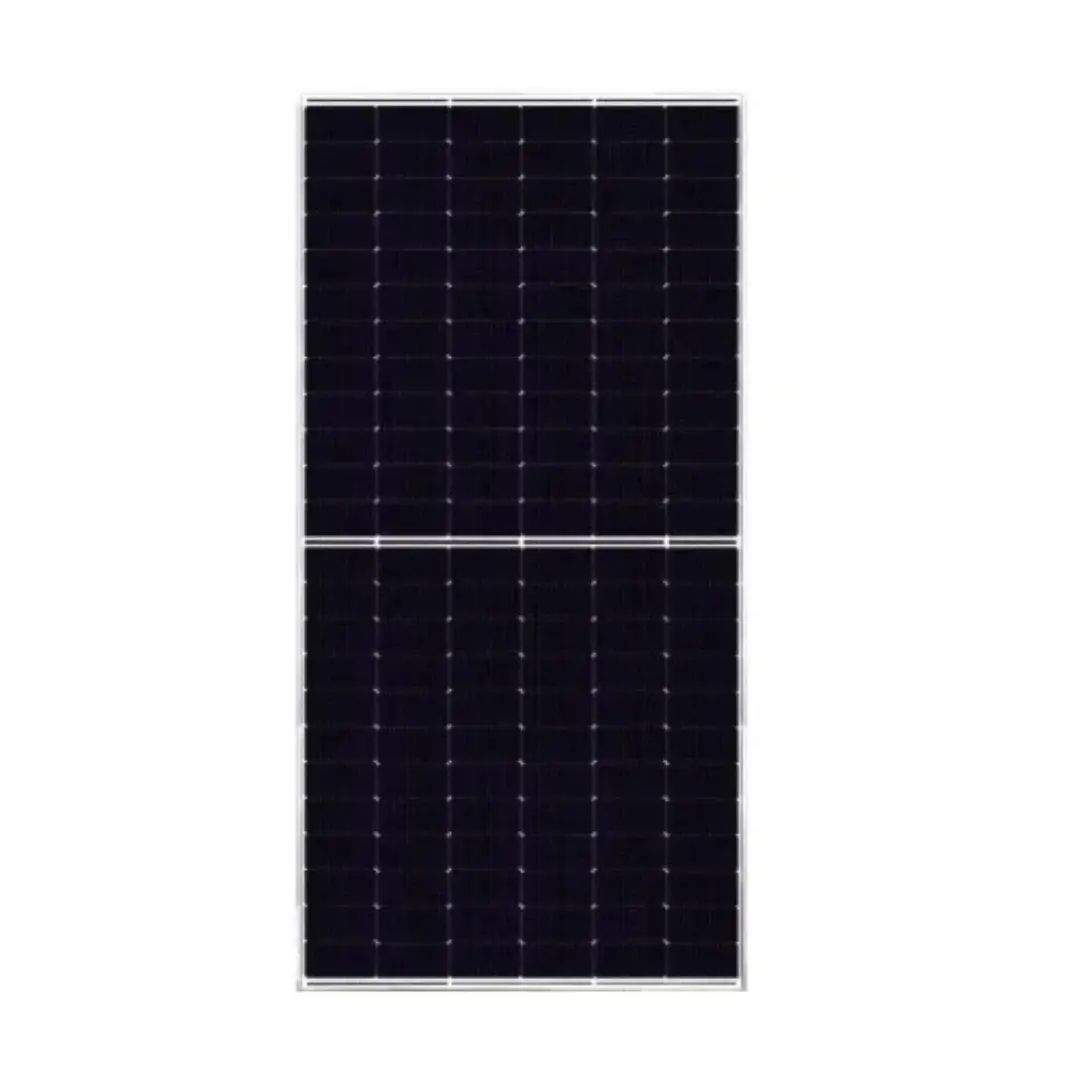

Canadian 610W N-Type Bifacial Solar Panel

Canadian 610W N-Type Bifacial Solar Panel

Canadian Solar 610W N-Type Bifacial Solar Panel delivers high power output and modern N-type TOPCon cell efficiency with a bifacial dual-glass design. It captures sunlight from both front and rear surfaces — giving extra energy yield especially on reflective ground or bright surfaces. Its sturdy build with tempered dual glass, aluminum frame, and weather-resistant structure makes it suitable for commercial, industrial, or utility-scale solar installations where long-term reliability and high energy output matter.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial (dual-glass)

• Maximum Power (Pmax): 610 W

• Module Efficiency: up to ~22.6–22.8%

• Voltage at Maximum Power (Vmp): ~40.8–44.4 V

• Current at Maximum Power (Imp): ~14.9–15.0 A

• Open-Circuit Voltage (Voc): ~48.0–52.4 V

• Short-Circuit Current (Isc): ~15.9 A (approx.)

• Power Tolerance: typically 0 to +3% (some variants may allow small positive tolerance)

• Cell Configuration: 132 half-cut N-type TOPCon cells

• Dimensions: ~2382 × 1134 × 30 mm

• Module Weight: ~32.8–33.6 kg

• Glass: Dual tempered glass (front + rear)

• Frame: Anodized aluminum alloy

• Junction Box: Weather-resistant, IP-rated, with bypass diodes

• Connectors: Standard (e.g. MC4 or compatible)

• Maximum System Voltage: 1500 V DC

• Mechanical Load Rating: Snow load up to ~5400 Pa, wind load ~2400 Pa (depending on mounting)

• Operating Temperature Range: –40 °C to +85 °C

• Bifacial Gain: Capable of additional energy yield from rear side under suitable conditions (e.g. reflected light)

• Recommended Use: Commercial solar farms, rooftop arrays, ground-mounted systems, utility-scale solar plants
