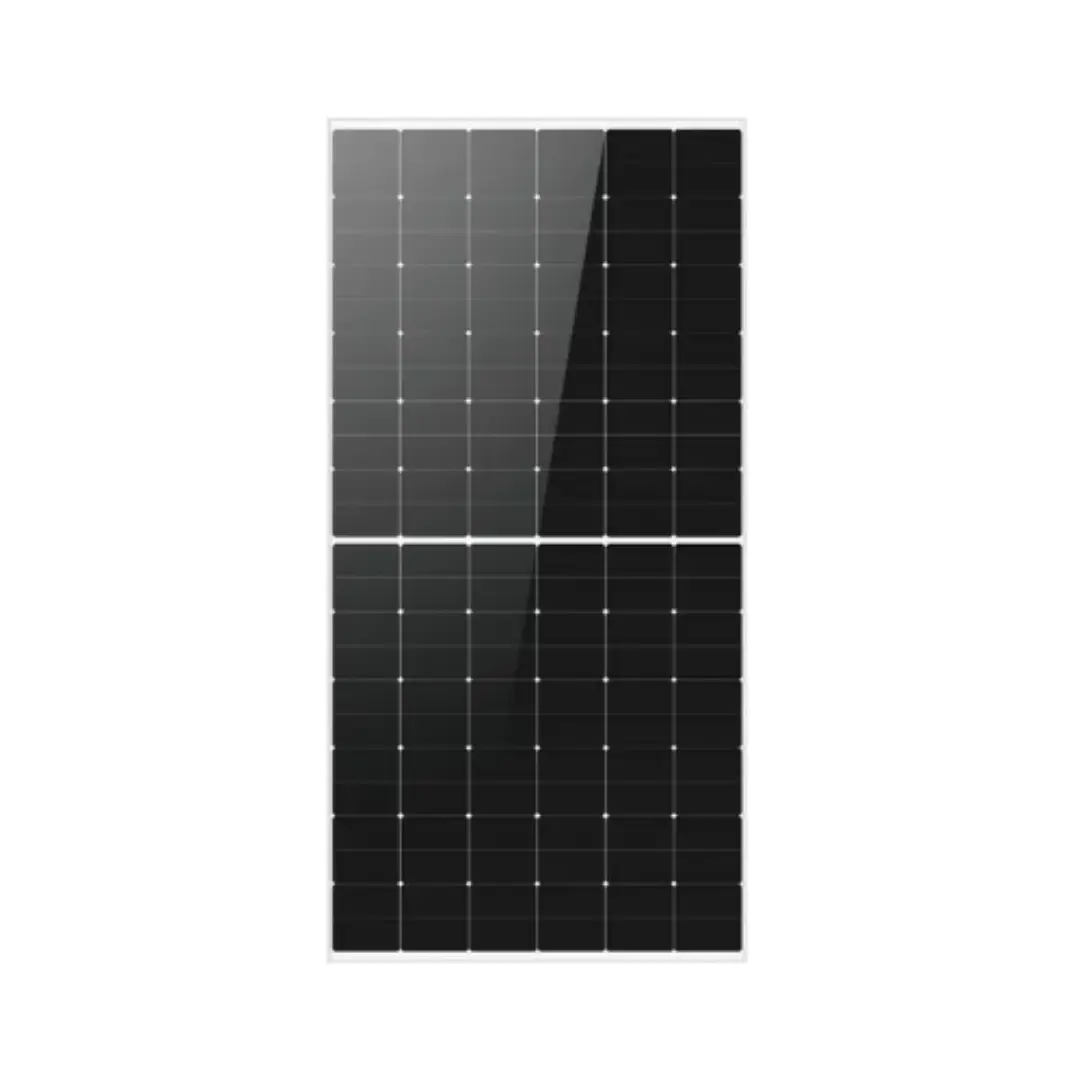

Canadian 585W N‑Type Bifacial Solar Panel

Canadian 585W N‑Type Bifacial Solar Panel

The Canadian 585W N‑Type Bifacial Solar Panel gives you efficient, dual‑sided energy generation that works both on the front and back sides — ideal when installed over reflective surfaces or light-coloured ground. With advanced N‑type TOPCon cells in a bifacial dual‑glass build, this panel boosts total energy yield and remains stable even in harsh environments. Its sturdy frame and weather‑resistant construction make it suitable for residential, commercial, and large‑scale solar projects aiming for consistent performance and long service life.

Full Specifications:

• Module Type: N‑type mono‑crystalline, bifacial dual‑glass (TOPCon)

• Maximum Power (Pmax): 585 W

• Module Efficiency: ~ 22.5%–22.6%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~ 43.3 V

• Current at Maximum Power (Imp): ~ 13.5 A

• Open‑Circuit Voltage (Voc): ~ 52.4 V

• Short‑Circuit Current (Isc): ~ 14.0 A

• Cell Configuration: 144 half‑cut N‑type cells (or as per panel layout)

• Glass: Dual tempered glass (front + back)

• Frame: Anodized aluminum alloy

• Junction Box: Weather‑resistant, standard PV‑rated (e.g. IP‑rated)

• Connectors: Standard PV connectors (e.g. MC4‑compatible or equivalent)

• Maximum System Voltage: 1500 V DC

• Mechanical Load Capacity: High wind / snow load tolerance (standard for bifacial modules)

• Operating Temperature Range: –40 °C to +85 °C (suitable for varied climates)

• Bifacial Energy Generation: Able to generate power from both front and rear — extra yield when rear side gets reflected or diffused sunlight

• Recommended Use: Roof‑mounted systems, commercial roofs, ground‑mounted solar farms, and industrial installations where high yield per panel is needed
