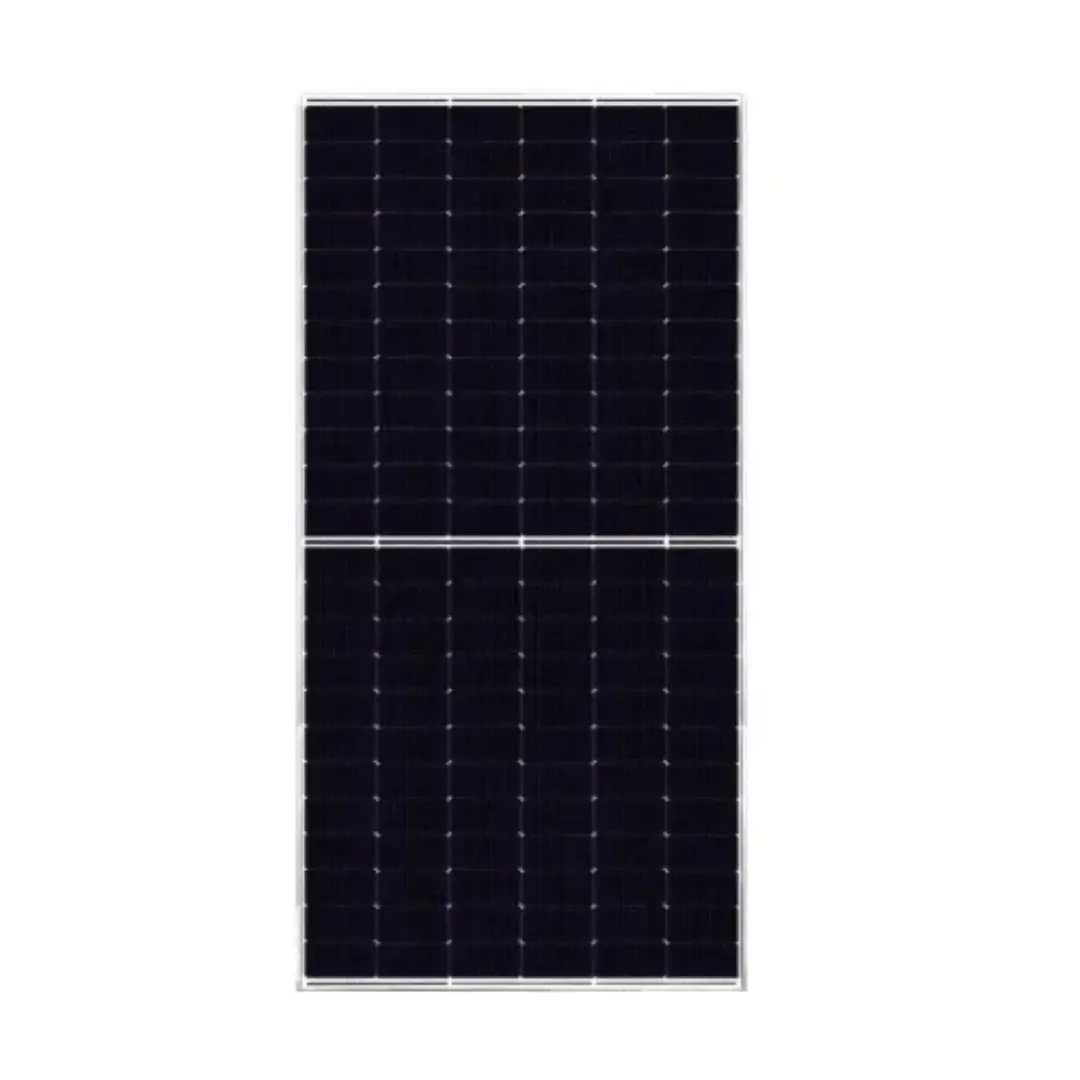

Canadian 585W Monofacial Solar Panel

Canadian 585W Monofacial Solar Panel

The Canadian 585W Monofacial Solar Panel delivers high power and reliable performance for residential, commercial, or utility‑scale solar systems. Its mono‑crystalline cells and efficient design convert sunlight into clean energy with strong output, while tempered glass and a sturdy aluminum frame ensure long‑term durability. This panel is a practical choice for installers looking to get maximum energy from each unit and dependable performance in a variety of climates.

Full Specifications:

• Module Type: Mono‑crystalline, monofacial solar panel

• Maximum Power (Pmax): 585 W

• Module Efficiency: ~21.5–22.0%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~41–44 V

• Current at Maximum Power (Imp): ~13.3–14.2 A

• Open‑Circuit Voltage (Voc): ~49–51 V

• Short‑Circuit Current (Isc): ~14.0–14.8 A

• Cell Configuration: Half‑cut mono‑crystalline cells (typically 132 or 144 cells depending on model)

• Glass: Tempered front glass for impact and weather resistance

• Frame: Anodized aluminum alloy

• Connectors: Standard PV connectors (MC4‑compatible or equivalent)

• Maximum System Voltage: up to 1500 V DC (depending on system design)

• Operating Temperature Range: ~ –40 °C to +85 °C

• Mechanical Load Rating: Designed to withstand standard wind and snow loads for solar installations

• Recommended Use: Residential rooftops, commercial buildings, ground‑mounted solar arrays, and utility‑scale solar projects
