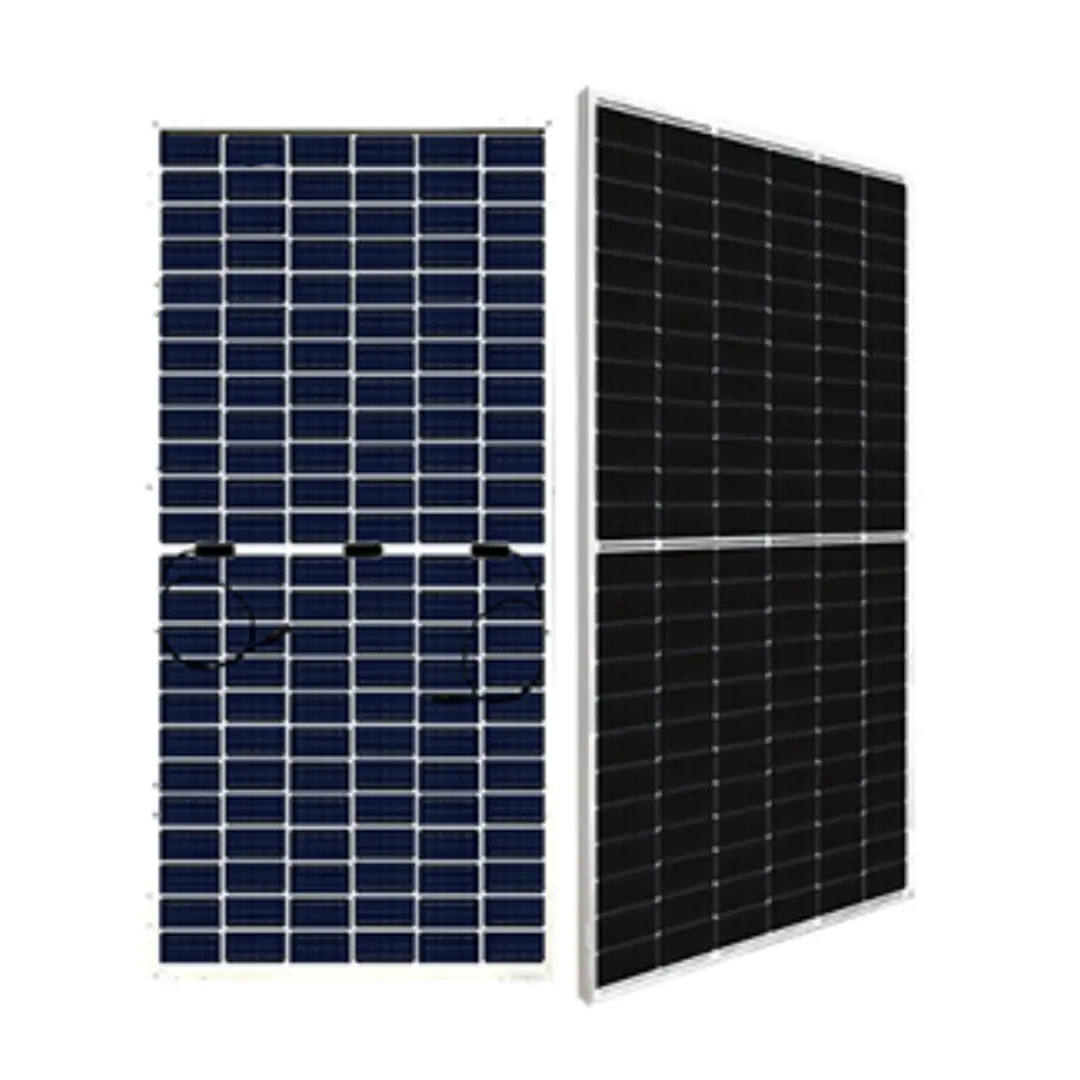

Canadian 570W N-Type Bi-Facial Solar Panel

Canadian 570W N-Type Bi-Facial Solar Panel

The Canadian 570W N-Type Bi-Facial Solar Panel offers dependable high output and efficiency by capturing sunlight on both its front and rear surfaces. Its N-type cells deliver strong performance, and the bi-facial design boosts total energy yield — especially when installed over reflective surfaces or light-colored ground. Built with dual tempered glass and a durable frame, it is well-suited for residential rooftops, commercial buildings, or large solar farms, ensuring reliable long-term energy production.

Full Specifications:

• Module Type: N-type mono-crystalline, bifacial dual-glass

• Maximum Power (Pmax): 570 W

• Module Efficiency: ~21.8–22.2%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~41–43 V

• Current at Maximum Power (Imp): ~13.2–13.8 A

• Open-Circuit Voltage (Voc): ~50–52 V

• Short-Circuit Current (Isc): ~14.0–14.5 A

• Cell Configuration: Half-cut N-type cells (exact count depends on panel variant)

• Bi-Facial Generation: Rear-side energy harvesting in addition to front surface

• Glass: Dual tempered glass (front + back) for durability and longevity

• Frame: Anodized aluminum alloy

• Maximum System Voltage: 1500 V DC

• Junction Box: Weather-resistant, PV-standard rating

• Connectors: Standard MC4-compatible (or equivalent) PV connectors

• Operating Temperature Range: –40 °C to +85 °C

• Mechanical Load Rating: Designed to tolerate standard wind and snow loads typical for solar installations

• Recommended Use: Rooftop installations, ground-mounted arrays, commercial and residential solar projects
