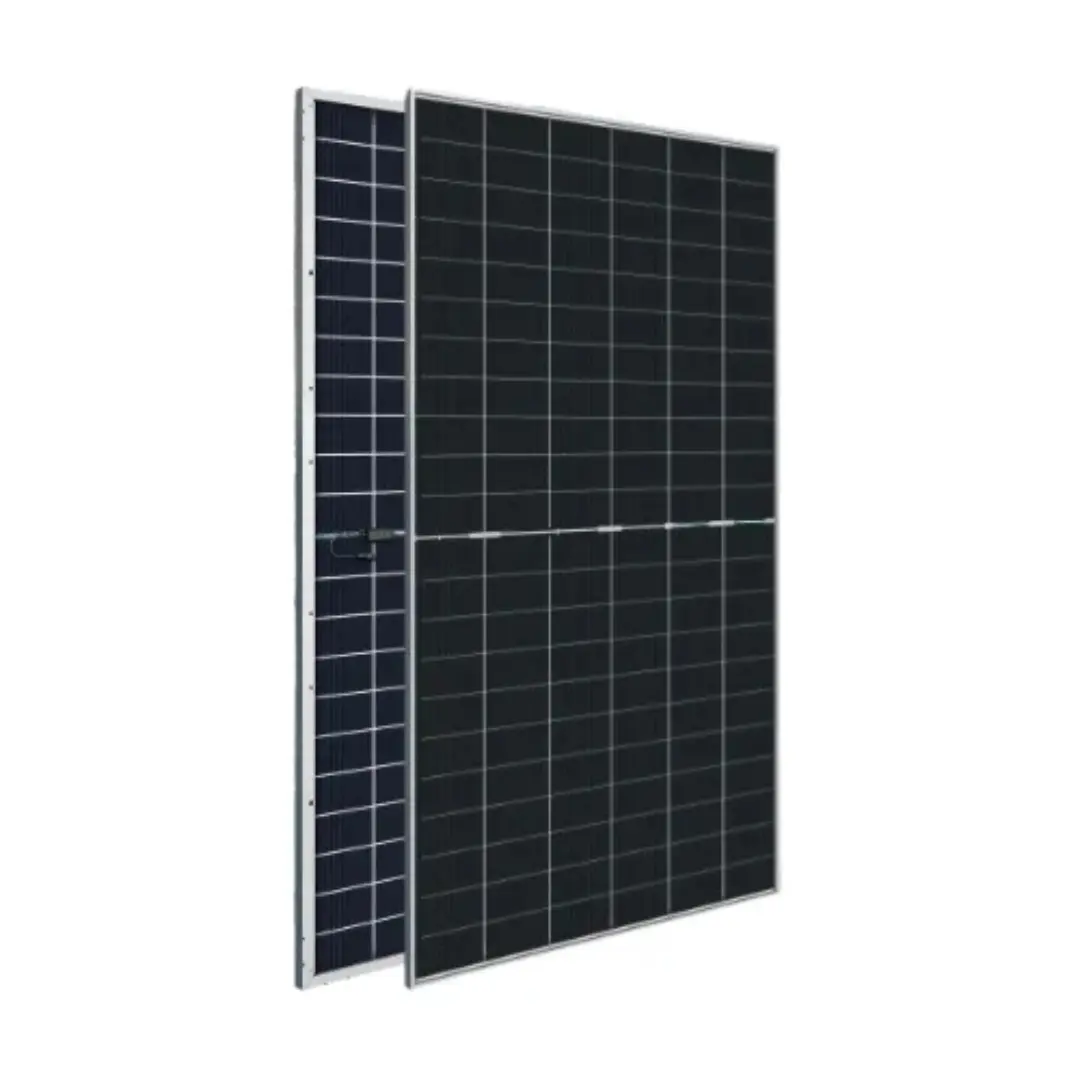

Astronergy 705W N‑Type Bifacial Solar Panel

Astronergy 705W N‑Type Bifacial Solar Panel

The Astronergy 705W N‑Type Bifacial Solar Panel delivers ultra‑high power and excellent energy performance for large solar installations. Its N‑type cells reduce performance loss and improve efficiency, while the bifacial design generates power from both the front and back surfaces boosting total energy yield when installed over reflective surfaces. With tempered dual glass and a strong aluminum frame, this panel is built to withstand harsh environments and provide reliable energy output over many years, making it ideal for commercial, industrial, or utility‑scale solar projects.

Full Specifications:

• Module Type: N‑type mono‑crystalline, bifacial dual‑glass

• Maximum Power (Pmax): 705 W

• Module Efficiency: ~23% (approximate range for high‑output panels)

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~41–45 V

• Current at Maximum Power (Imp): ~15.5–17.4 A

• Open‑Circuit Voltage (Voc): ~50–53 V

• Short‑Circuit Current (Isc): ~16.2–18.1 A

• Cell Configuration: Large‑format N‑type cells (half‑cut / large seed / high power design)

• Bifacial Generation: Yes — produces power from both front and rear sides

• Glass: Dual tempered glass (front and back) for durability and enhanced light absorption

• Frame: Anodized aluminum alloy — sturdy and weather‑resistant

• Maximum System Voltage: ~1500 V DC

• Junction Box: Weather‑resistant standard PV junction box

• Connectors: MC4‑compatible or equivalent PV connectors

• Operating Temperature Range: ~‑40 °C to +85 °C (wide weather tolerance)

• Mechanical Load Rating: Designed to withstand high wind and snow loads common in large installations

• Recommended Use: Commercial rooftops, industrial solar fields, ground‑mounted solar farms, utility‑scale PV systems
