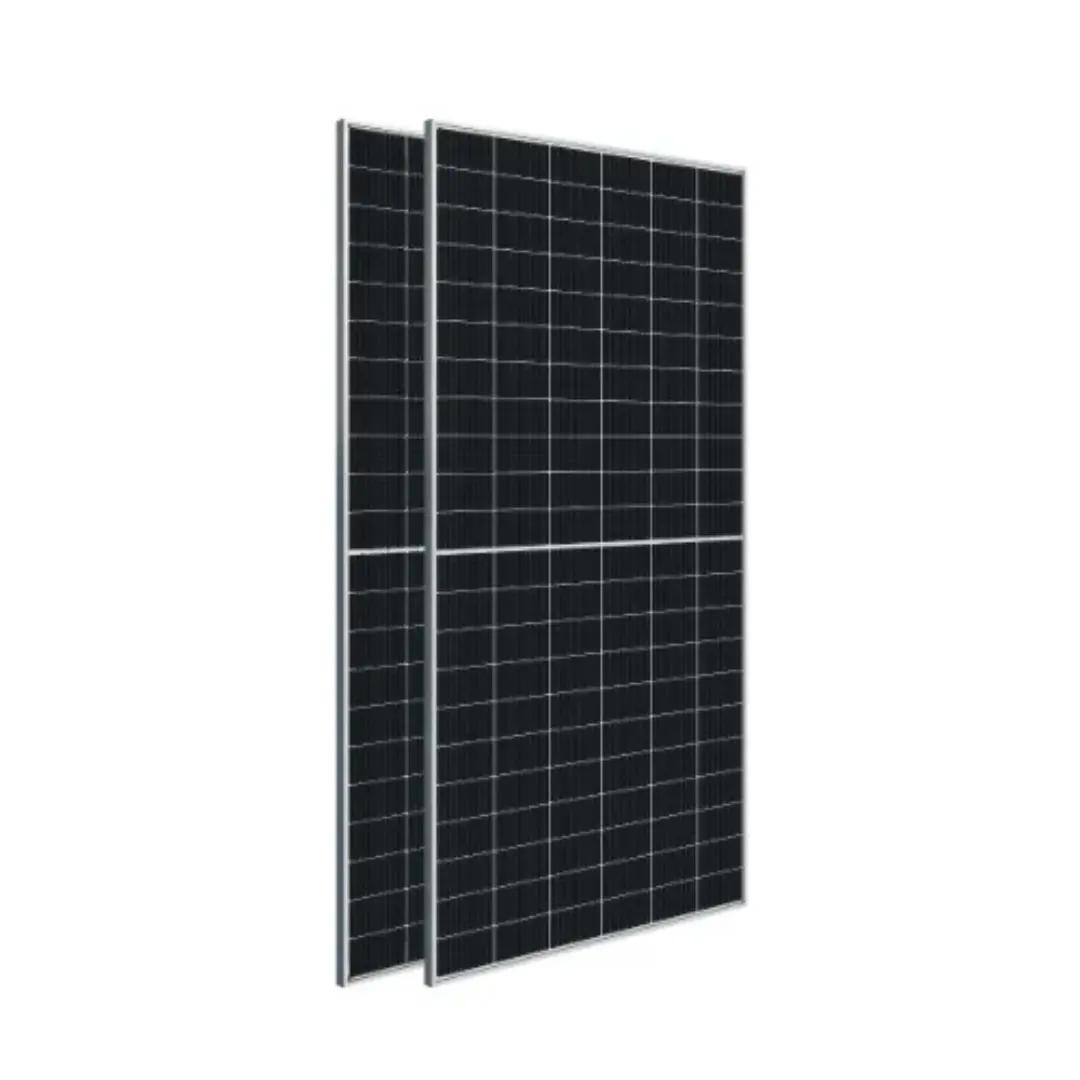

Astronergy 635W N‑Type Bifacial Solar Panel

Astronergy 635W N‑Type Bifacial Solar Panel

The Astronergy 635W N‑Type Bifacial Solar Panel delivers strong power output and excellent energy performance for large solar systems. Its N‑type cells boost efficiency and reduce degradation, while the bifacial design captures sunlight from both the front and back surfaces — increasing total energy yield, particularly on reflective ground or bright surfaces. Built with tempered dual glass and a sturdy aluminum frame, this panel offers reliable, long‑term performance for commercial roofs, solar farms, and utility‑scale installations.

Full Specifications:

• Module Type: N‑type mono‑crystalline, bifacial dual‑glass

• Maximum Power (Pmax): 635 W

• Module Efficiency: ~22.8%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~42–44 V

• Current at Maximum Power (Imp): ~14.5–15.2 A

• Open‑Circuit Voltage (Voc): ~50–52 V

• Short‑Circuit Current (Isc): ~15.3–15.9 A

• Cell Configuration: Large‑format N‑type cells (half‑cut / advanced layout)

• Bifacial Generation: Produces power from both front and rear sides

• Glass: Dual tempered glass (front + back) for durability and improved light capture

• Frame: Anodized aluminum alloy — strong and weather‑resistant

• Maximum System Voltage: 1500 V DC

• Junction Box: Weather‑resistant, standard PV junction box

• Connectors: MC4‑compatible (or equivalent) solar connectors

• Operating Temperature Range: –40 °C to +85 °C

• Mechanical Load Rating: Engineered to withstand wind and snow loads typical for utility installations

• Recommended Use: Commercial rooftops, ground‑mounted solar arrays, solar farms, and utility‑scale PV projects
