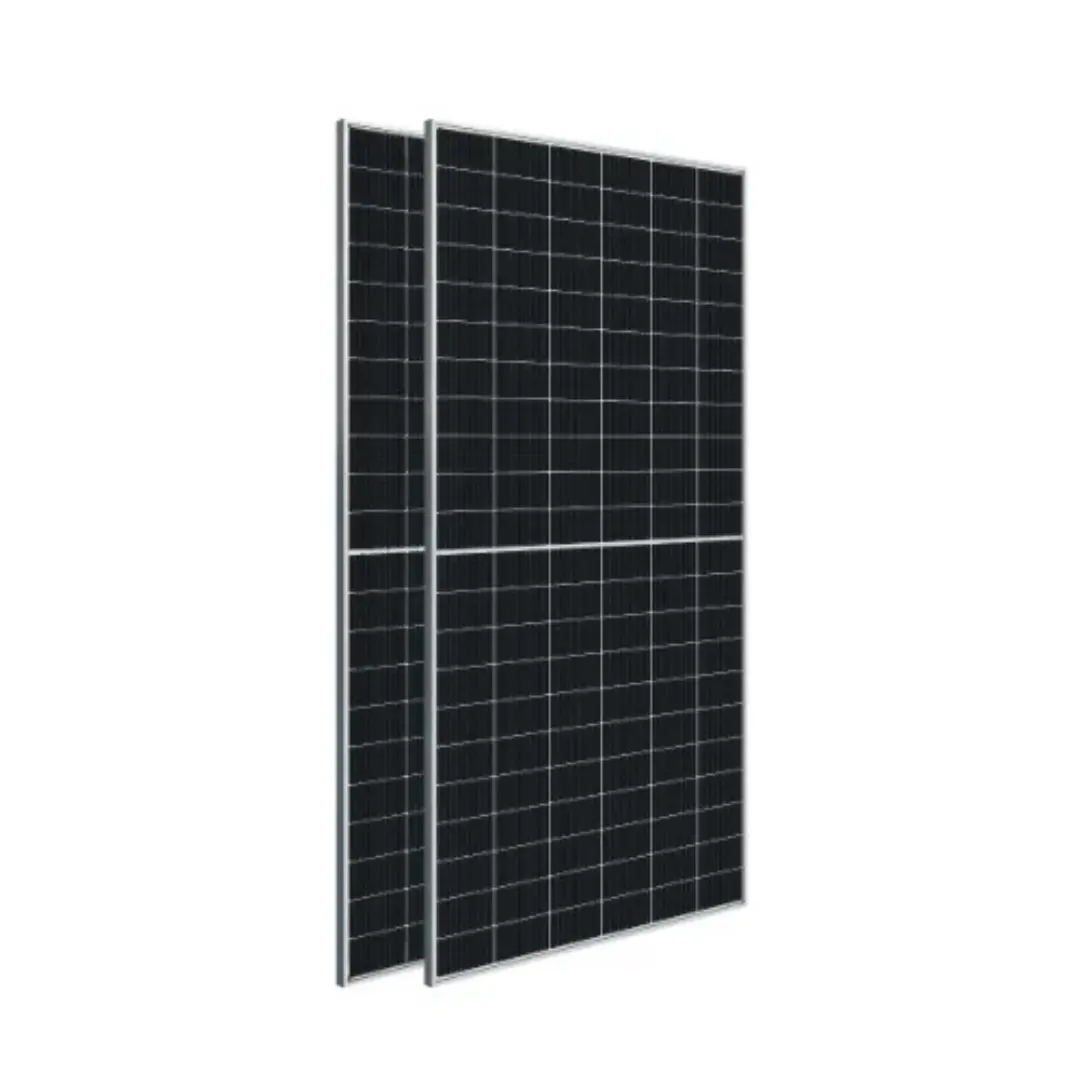

Astronergy 590W N-Type Bifacial Solar Panel

Astronergy 590W N-Type Bifacial Solar Panel

The Astronergy 590W N‑Type Bifacial Solar Panel delivers dependable high power and enhanced energy yield in a modern bifacial design. Its N‑type cells offer strong efficiency and reduced degradation, while the bifacial construction captures sunlight from both front and rear surfaces to increase total energy output especially on reflective surfaces or bright ground. Built with durable dual tempered glass and a robust aluminum frame, this panel provides long‑term reliability for rooftops, commercial installs, and solar farms.

Full Specifications:

• Module Type: N‑type mono‑crystalline, bifacial dual‑glass

• Maximum Power (Pmax): 590 W

• Module Efficiency: ~22.2%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~42–44 V

• Current at Maximum Power (Imp): ~13.4–14.1 A

• Open‑Circuit Voltage (Voc): ~50–52 V

• Short‑Circuit Current (Isc): ~14.0–14.8 A

• Cell Configuration: Half‑cut or optimized N‑type cells

• Bifacial Generation: Yes — produces energy from both front and rear surfaces

• Glass: Dual tempered glass (front and back) for durability and light capture

• Frame: Anodized aluminum alloy — strong and weather‑resistant

• Maximum System Voltage: 1500 V DC

• Junction Box: Weather‑resistant PV junction box

• Connectors: MC4‑compatible (or equivalent) solar connectors

• Operating Temperature Range: –40 °C to +85 °C

• Mechanical Load Rating: Designed to withstand typical wind and snow loads

• Recommended Use: Residential rooftops, commercial solar installations, ground‑mounted arrays, utility‑scale solar projects
