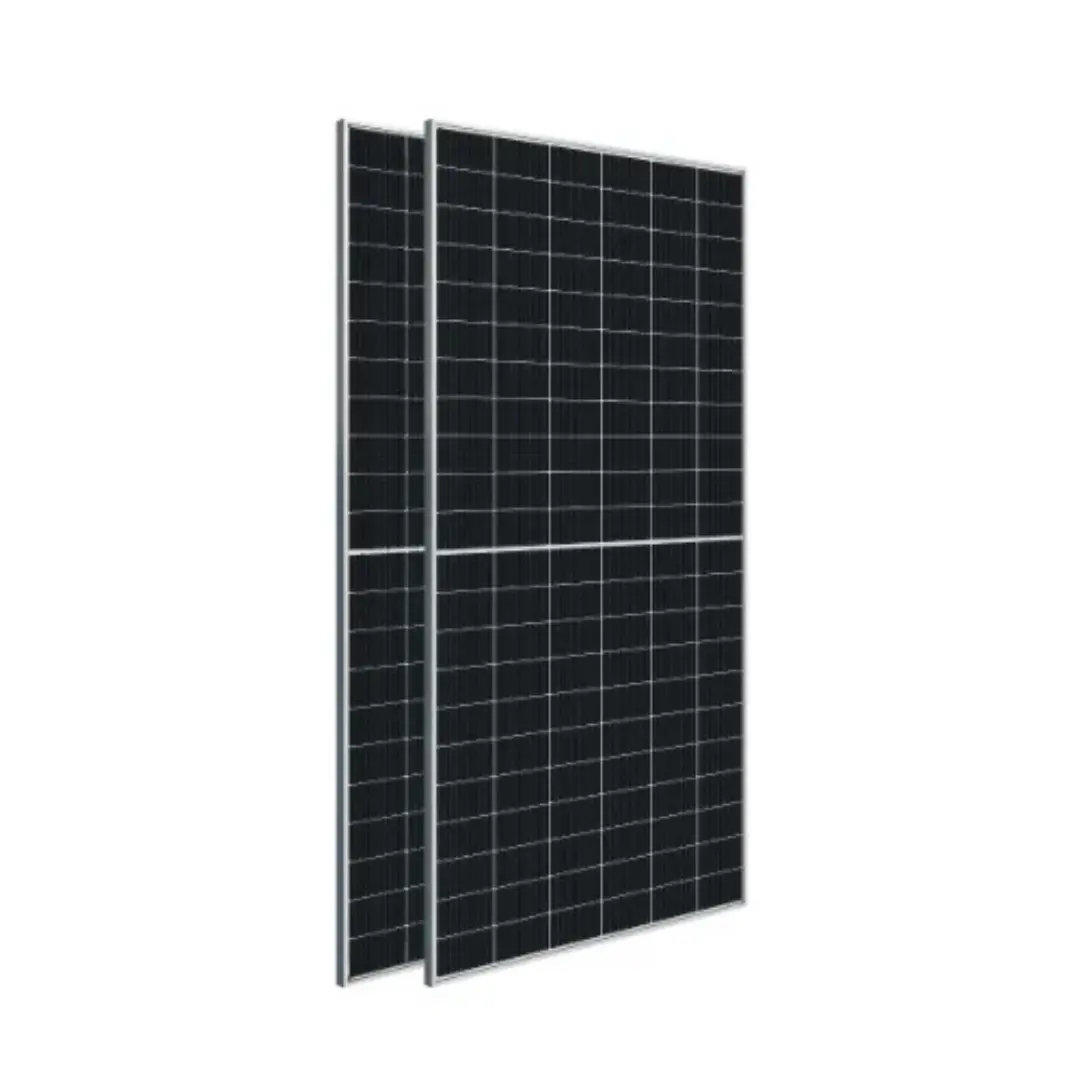

Astronergy 585W N‑Type Bifacial Solar Panel

Astronergy 585W N‑Type Bifacial Solar Panel

The Astronergy 585W N‑Type Bifacial Solar Panel provides dependable power and high efficiency for large solar systems. Its advanced N‑type cells offer strong energy conversion with low degradation over time, and the bifacial design captures sunlight from both the front and rear surfaces to boost total energy yield — especially when installed over reflective ground or surfaces. Built with tempered dual glass and a sturdy aluminum frame, this panel delivers long‑term durability and consistent performance for residential, commercial, and utility‑scale solar installations.

Full Specifications:

• Module Type: N‑type mono‑crystalline, bifacial dual‑glass

• Maximum Power (Pmax): 585 W

• Module Efficiency: ~22.0%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~42–44 V

• Current at Maximum Power (Imp): ~13.3–14.0 A

• Open‑Circuit Voltage (Voc): ~50–52 V

• Short‑Circuit Current (Isc): ~14.0–14.8 A

• Cell Configuration: Half‑cut N‑type cell layout

• Bifacial Generation: Energy capture from both front and rear panel surfaces

• Glass: Dual tempered glass for durability and enhanced light absorption

• Frame: Anodized aluminum alloy — strong and weather‑resistant

• Maximum System Voltage: 1500 V DC

• Junction Box: Weather‑resistant PV junction box

• Connectors: Standard MC4‑compatible (or equivalent) PV connectors

• Operating Temperature Range: –40 °C to +85 °C

• Mechanical Load Rating: Designed to withstand typical wind and snow loads

• Recommended Use: Residential rooftops, commercial solar installations, ground‑mounted arrays, and solar farms
