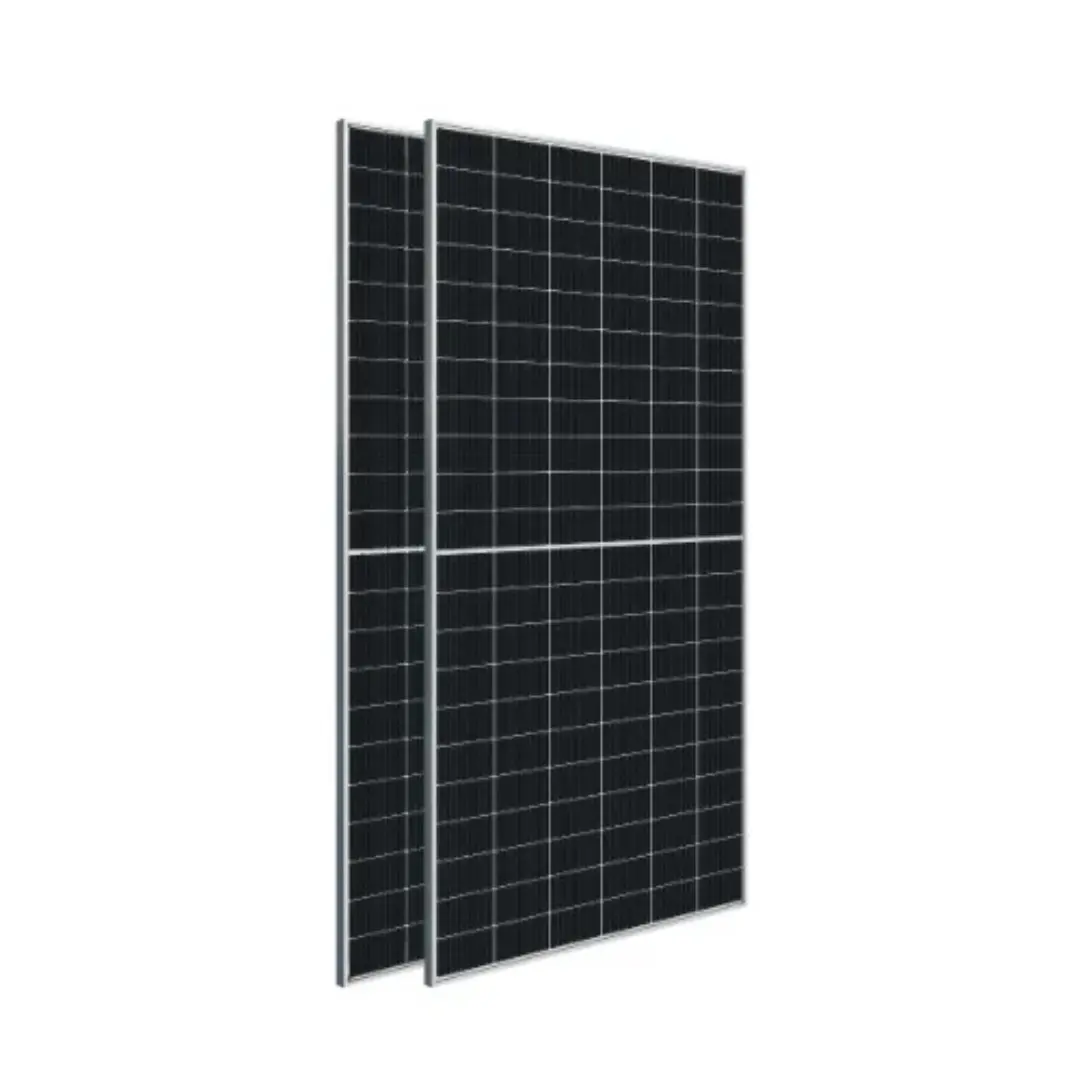

Astronergy 580W N‑Type Bifacial Solar Panel

Astronergy 580W N‑Type Bifacial Solar Panel

The Astronergy 580W N‑Type Bifacial Solar Panel delivers reliable high output and excellent energy yield by producing power from both its front and rear surfaces. Its advanced N‑type cells offer strong efficiency and low degradation over time, while the bifacial dual‑glass design captures extra light reflected from the ground or nearby surfaces. With a rugged aluminum frame and tempered glass, this panel is built for long‑term performance in residential, commercial, and utility‑scale solar installations.

Full Specifications:

• Module Type: N‑type mono‑crystalline, bifacial dual‑glass

• Maximum Power (Pmax): 580 W

• Module Efficiency: ~21.8%

• Power Tolerance: 0 to +3%

• Voltage at Maximum Power (Vmp): ~42–44 V

• Current at Maximum Power (Imp): ~13.0–14.0 A

• Open‑Circuit Voltage (Voc): ~50–52 V

• Short‑Circuit Current (Isc): ~14.0–14.6 A

• Cell Configuration: Half‑cut N‑type cells (optimized layout)

• Bifacial Generation: Yes — produces energy from both front and rear surfaces

• Glass: Dual tempered glass for durability and light capture

• Frame: Anodized aluminum alloy — strong and weather‑resistant

• Maximum System Voltage: 1500 V DC

• Junction Box: Weather‑resistant PV junction box

• Connectors: Standard MC4‑compatible solar connectors

• Operating Temperature Range: –40 °C to +85 °C

• Mechanical Load Rating: Designed to withstand typical wind and snow loads

• Recommended Use: Residential rooftops, commercial solar installations, ground‑mounted arrays, and solar farms
